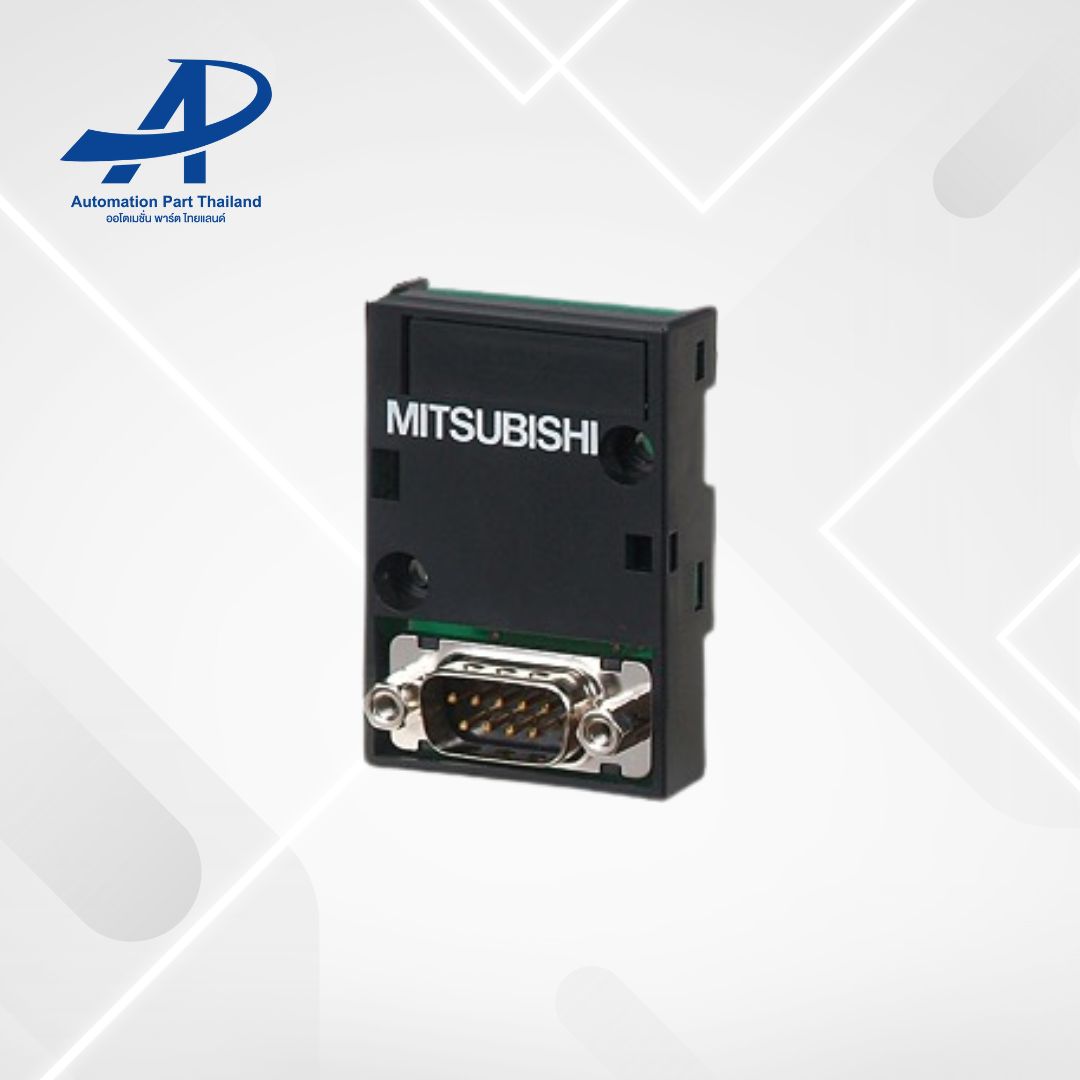

FX3G-232-BD

FX3G-232-BD Introduction:

※ RS232 serial communication expansion board,1 channel

※ An RS-232C communication adapter of the non-insulated (between the communication line and the CPU) type

※ Suitable specification :CE(EMC),KC,DNV,LR

FX3G-232-BD Other specifications:

Transmission specification: RS-232C

Insulation: Non-insulation

Transmission distance: maximum 15M

External machine connection mode: D-SUB 9-pin connector (male)

Communication mode: full duplex two-way

Communication speed:

※[no agreement, the computer link] 300/600/1200/2400/4800/9600/19200/38400 (bp)

※[programming communications] 9600/19200/38400/57600/115200 (bp)

Application series: FX3G
