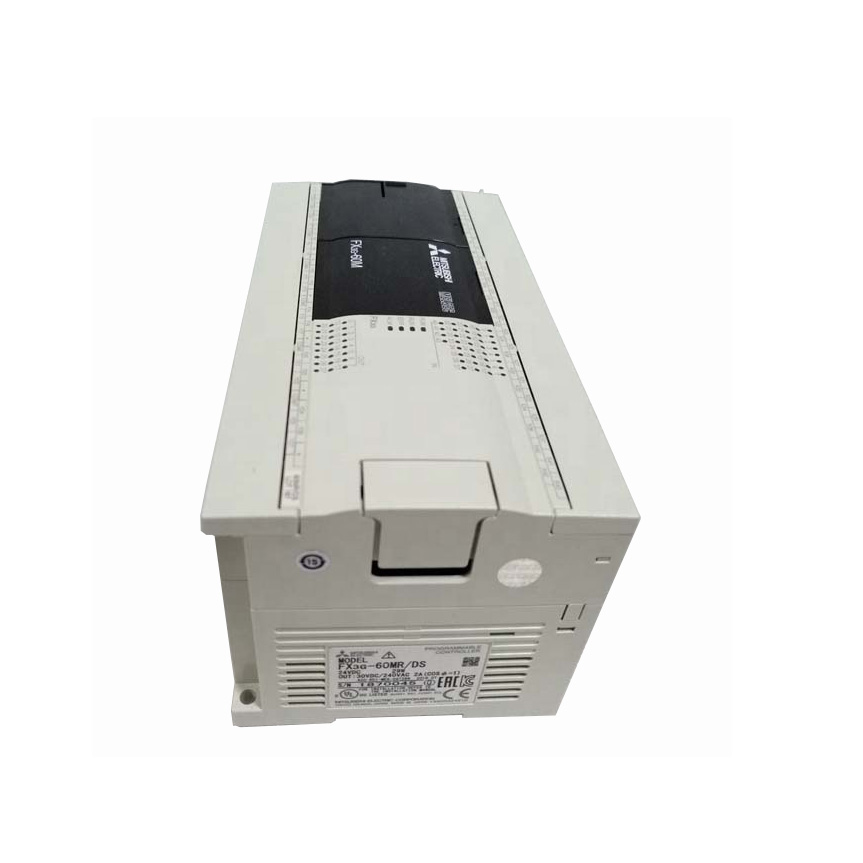

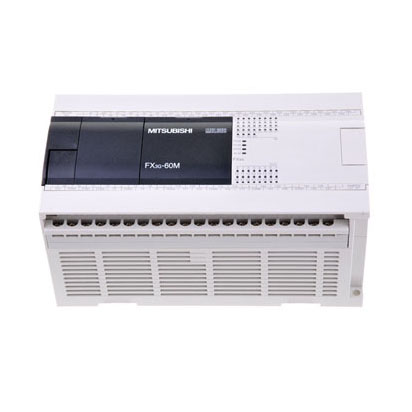

FX3G-60MR/DS

[FX3G-60MR/DS Input Specification]：

◆ The input specifications

◆ Disassembly type terminal row (M3 screw)

◆ 36 points (40 points occupied)

◆ Input mode: leakage/source

◆ [Input signal voltage] DC24V ±10%

◆ [input impedance] 3.3 k Ω (X0 to X7), 4.3 k Ω X010 later

◆ [Input signal current] 7mA/DC24V (X0~X7), 5mA/DC24V X010 later

◆ [Input ON sensitivity current] 4.5mA above (X0~X7), 3.5mA above X010

◆ [Input OFF sensitivity current] below 1.5mA

◆ [Input response time] approximately 10ms

◆ Input signal form no voltage contact input

◆ Leakage input :NPN open collector transistor

◆ Source input :PNP open collector transistor

◆ Optocoupler isolation

◆ The LED light on the panel is on when the optocoupler drives
