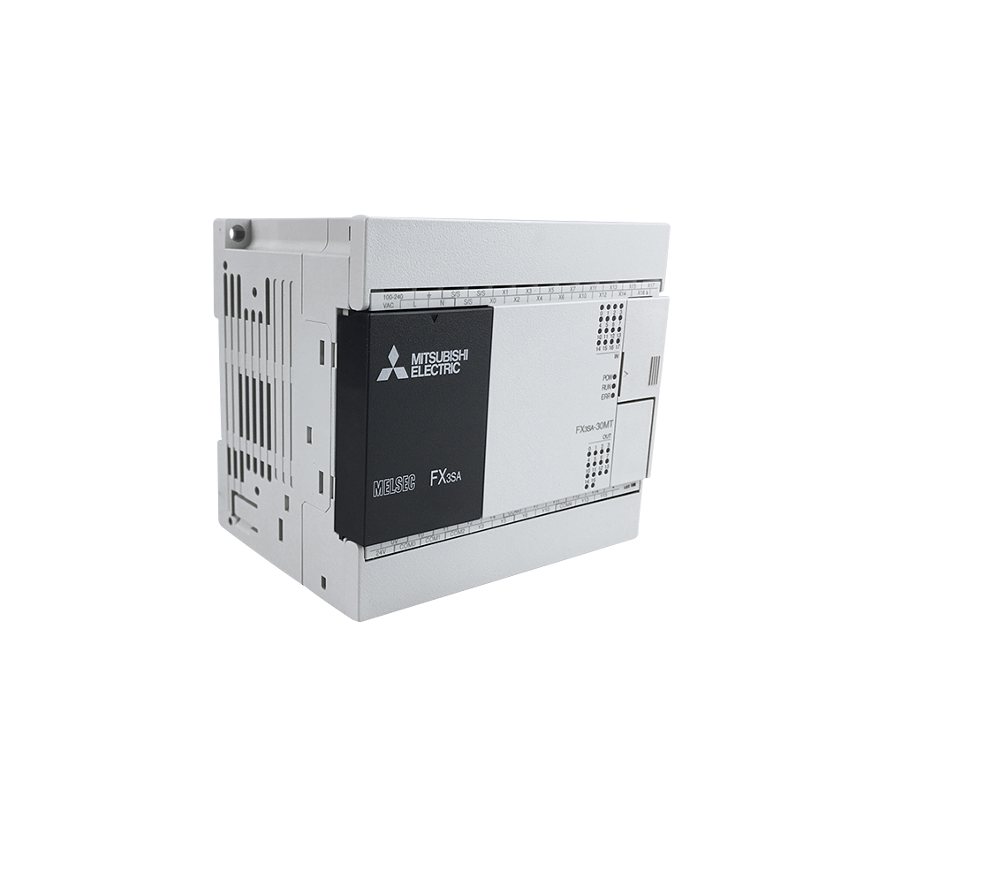

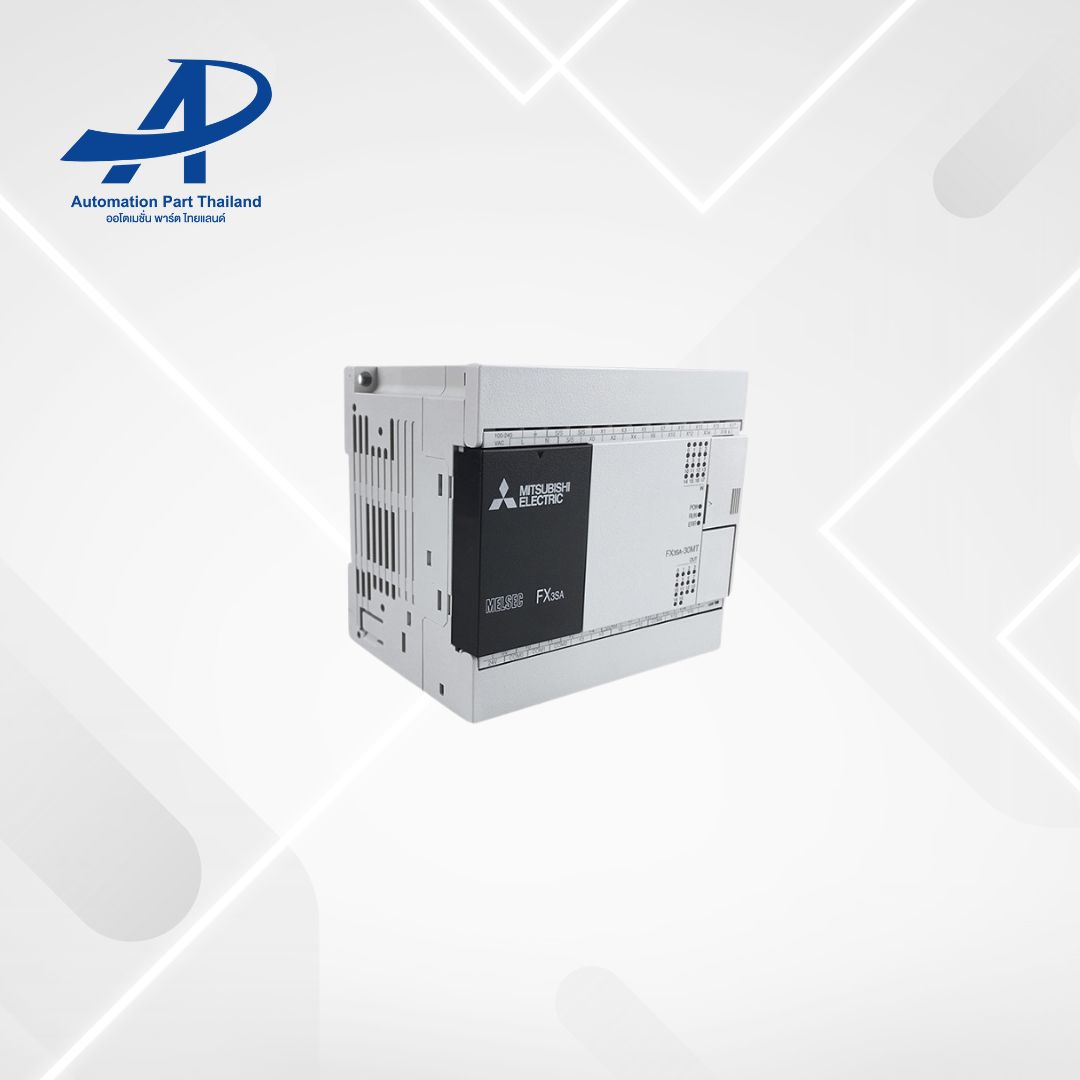

FX3SA-30MT-CM

Input form: leakage/source

Input points: 16

Input connection mode: Fixed terminal row

Input signal voltage: DC24V ±10%

Input impedance: X000 ~ X005 Ω (3.9 K) above X006 Ω (3.3 K)

Input signal current: X000~X005(6mA/DC24V) X006 + (7mA/DC24V)

ON input induced current: X000~X005(above 3.5mA) X006 (above 4.5mA)

OFF input induction current: Below 1.5mA

Input signal form: No voltage contact input

Leakage input: NPN open collector transistor

Source input: PNP open collector transistor

Input loop isolation: Optocoupler isolation

Display of input action: The LED light on the panel is on when the optocoupler drives
