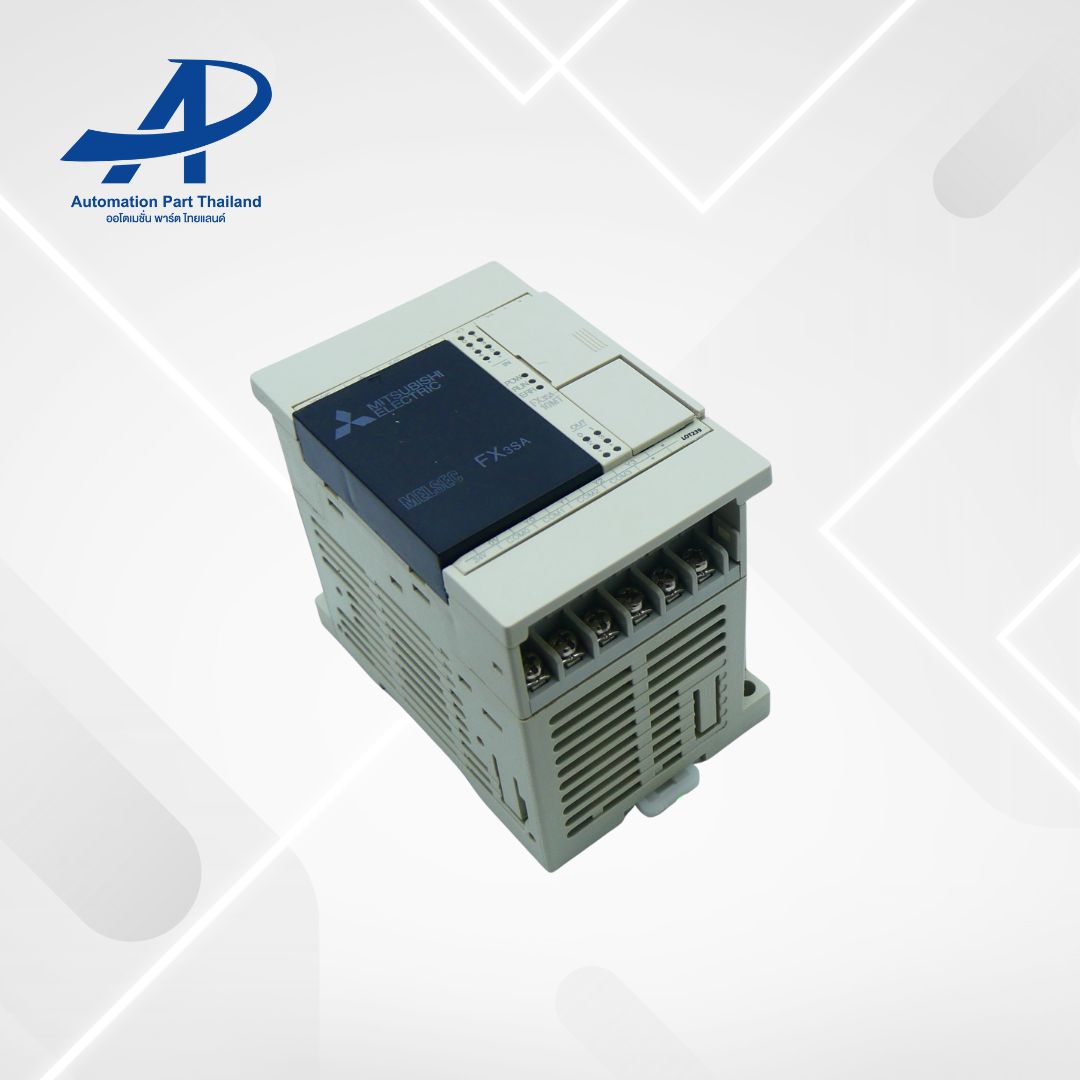

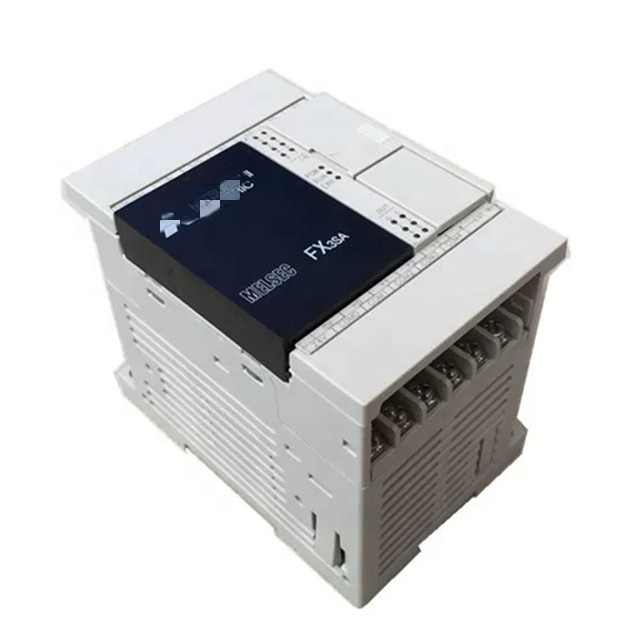

FX3SA-10MT-CM

◆ Input form: leakage/source

◆ Input points: 6

◆ Input connection mode: fixed terminal row

◆ Input signal voltage: DC24V ±10%

◆ Input impedance: X000 ~ X005 Ω (3.9 K)

◆ Input signal current: X000~X005(6mA/DC24V)

◆ ON input induced current: X000~X005(above 3.5mA)

◆ OFF input induction current: below 1.5mA

◆ Input signal form: no voltage contact input

◆ Leakage input: NPN open collector transistor

◆ Source input: PNP open collector transistor

◆ Input loop isolation: optocoupler isolation

◆ Display of input action: The LED light on the panel is on when the optocoupler drives
