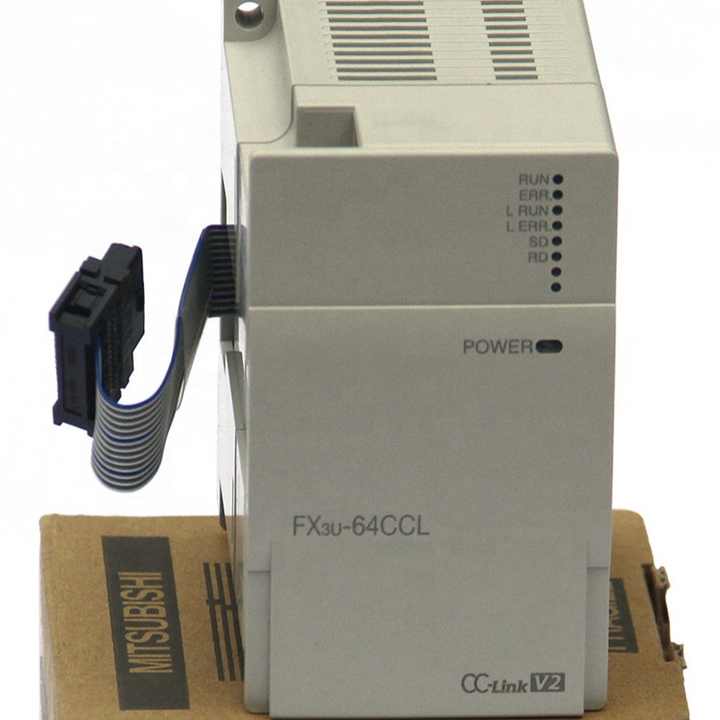

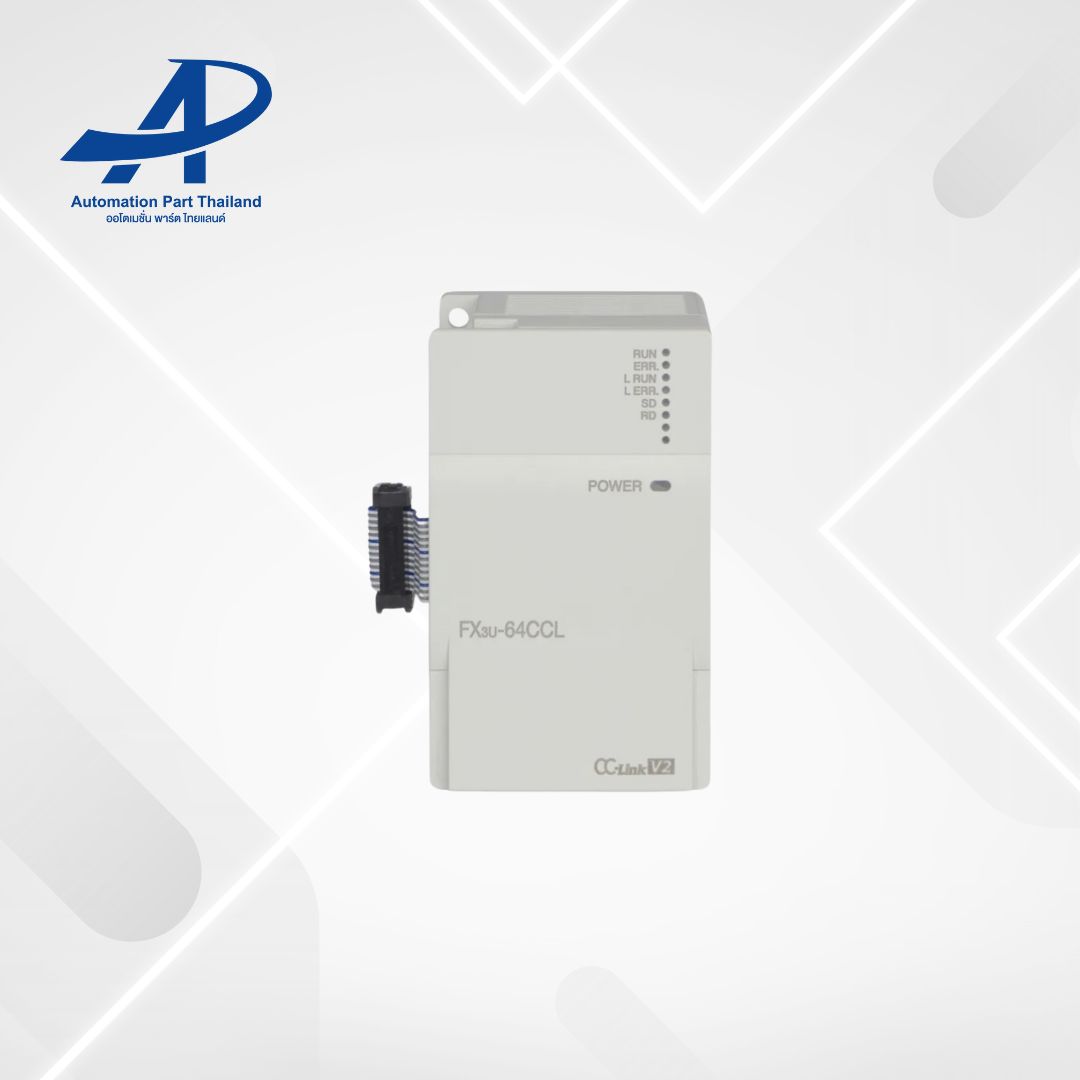

FX3U-64CCL

The performance specifications

◆ Applicable functions: local station functions

◆ CC-Link version :Ver.2.00

Transmission speed: 156 KBPS / 625 KBPS / 2.5 Mbps / 5 Mbps / 10 Mbps of selection (selection) with the knob switch

◆ Station No: 1~64 (set with turngirl switch)

◆ Number of stations occupied: 1~4

Maximum quantity (maximum transmission distance) of total length of cable: the maximum is 1200m

◆ Remote input and output points: 32 input points, 32 output points

◆ Remote register points: RW writes 4 points and reads 4 points

◆ Communication mode: polling mode

◆ Synchronization mode: frame synchronization mode

◆ Coding method :NRZI

Transmission line mode: Bus (RS-485)

Transmission format :HDLC specification

◆ Error control method: CRC(X16+X12+X5+1)

◆ Connection cable: special CC-Link cable or special high-performance CC-Link cable

◆ Communication with PLC: directly specified through cache using FROM/TO instruction (through buffer memory)

◆ Display LED: RD, SD, RUN, ERR., L RUN, L ERR., POWER

I/O points: 8 points

Weight (KG) : 0.3 KG

◆ Power supply (external):DC24V + 20%-15%

Power supply (internal) : internal power supply DC 5V

◆ Allow instantaneous blackout time: PS1: less than 1ms

◆ Consumption current: 220mA
