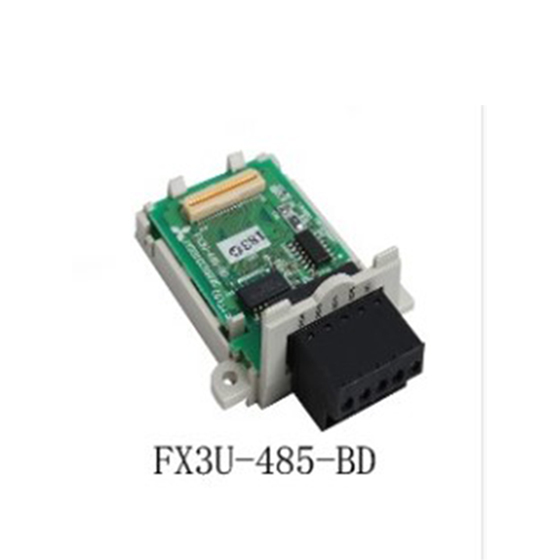

Mitsubishi FX3U Mitsubishi FX3U-485-BD RS485 serial communication expansion board:

The RS485 interface has a computer to connect programming and display.

1) Connection method of external equipment: European terminal block

2) Insulation: non-insulated (non-insulated between the communication line and the serializer body)

3) Maximum transmission distance: up to 50 meters

4) Communication mode: half-duplex two-way

5) Transmission specification: RS-485/422

6) Power specification: DC5V 40 mA (internal power supply for the sequence)

7) Applicable models: FX3U, FX3UC-32MT

8) Communication program: non-sequential computer connection (special protocol form 1, special protocol form 4), parallel connection,

Simple inter-PC link, inverter communication

9) Communication speed:

Non-sequential computer connection: 300/600/1200/2400/4800/9600/19200 (bps)

Parallel connection: 115200 (bps)

Simple link between PCs: 38400 (bps)

Inverter communication: 4800/9600/19200 (bps)
