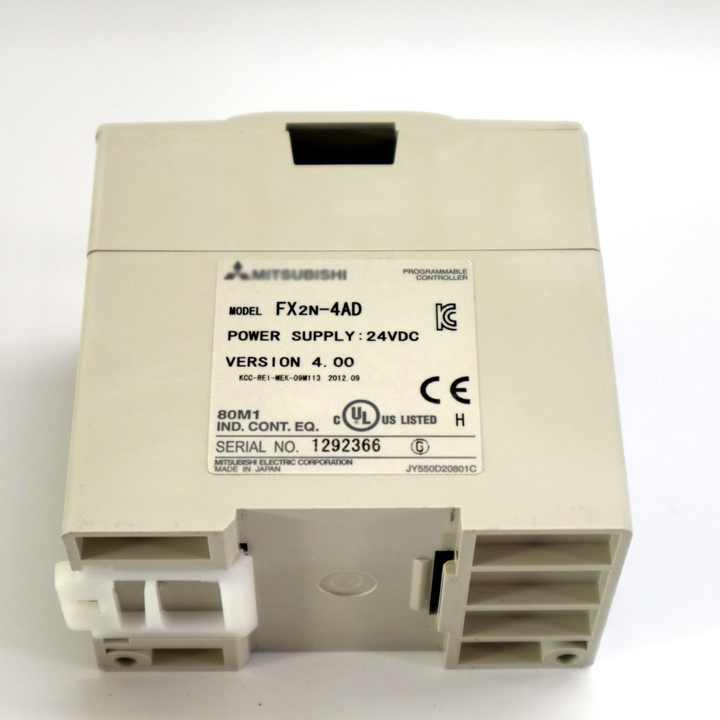

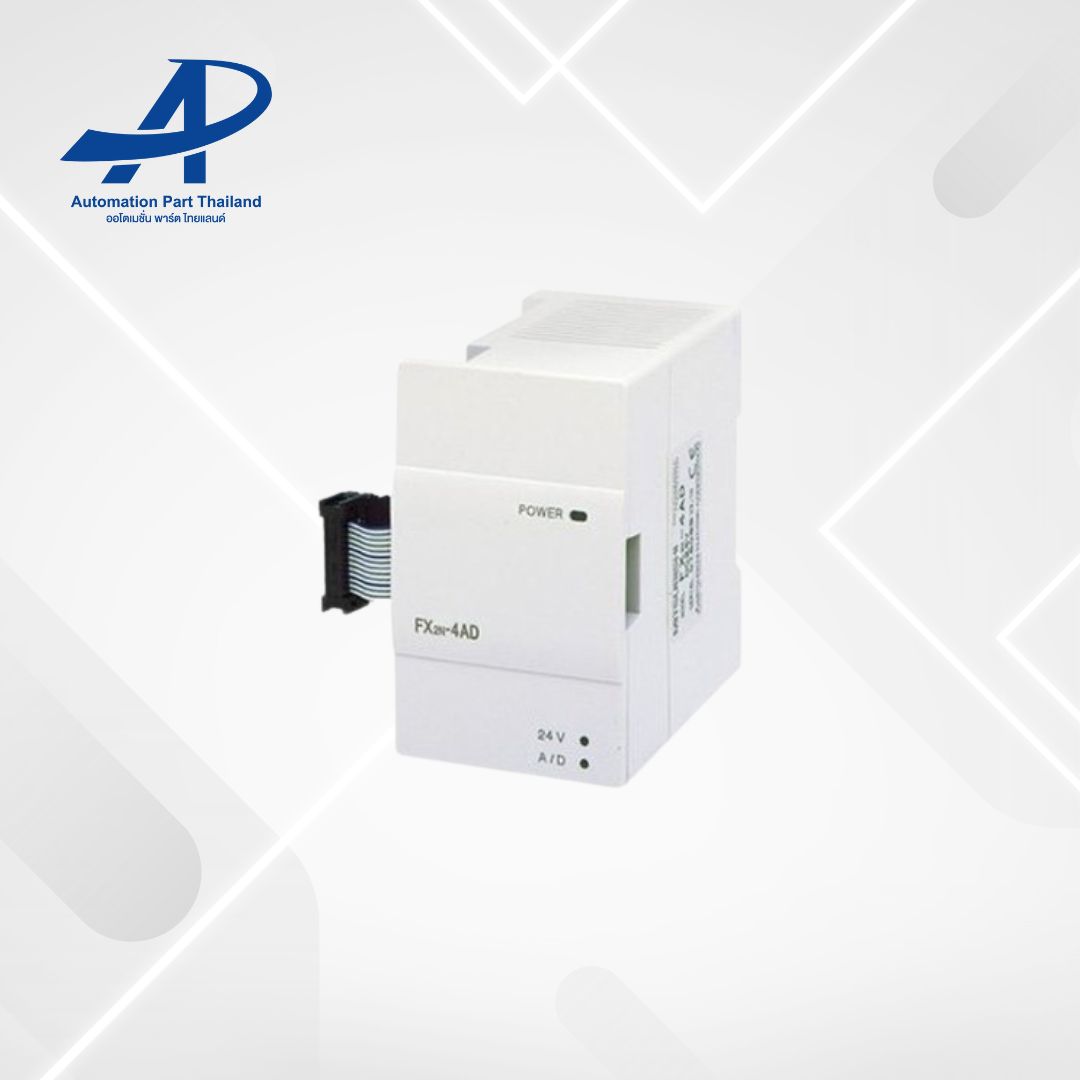

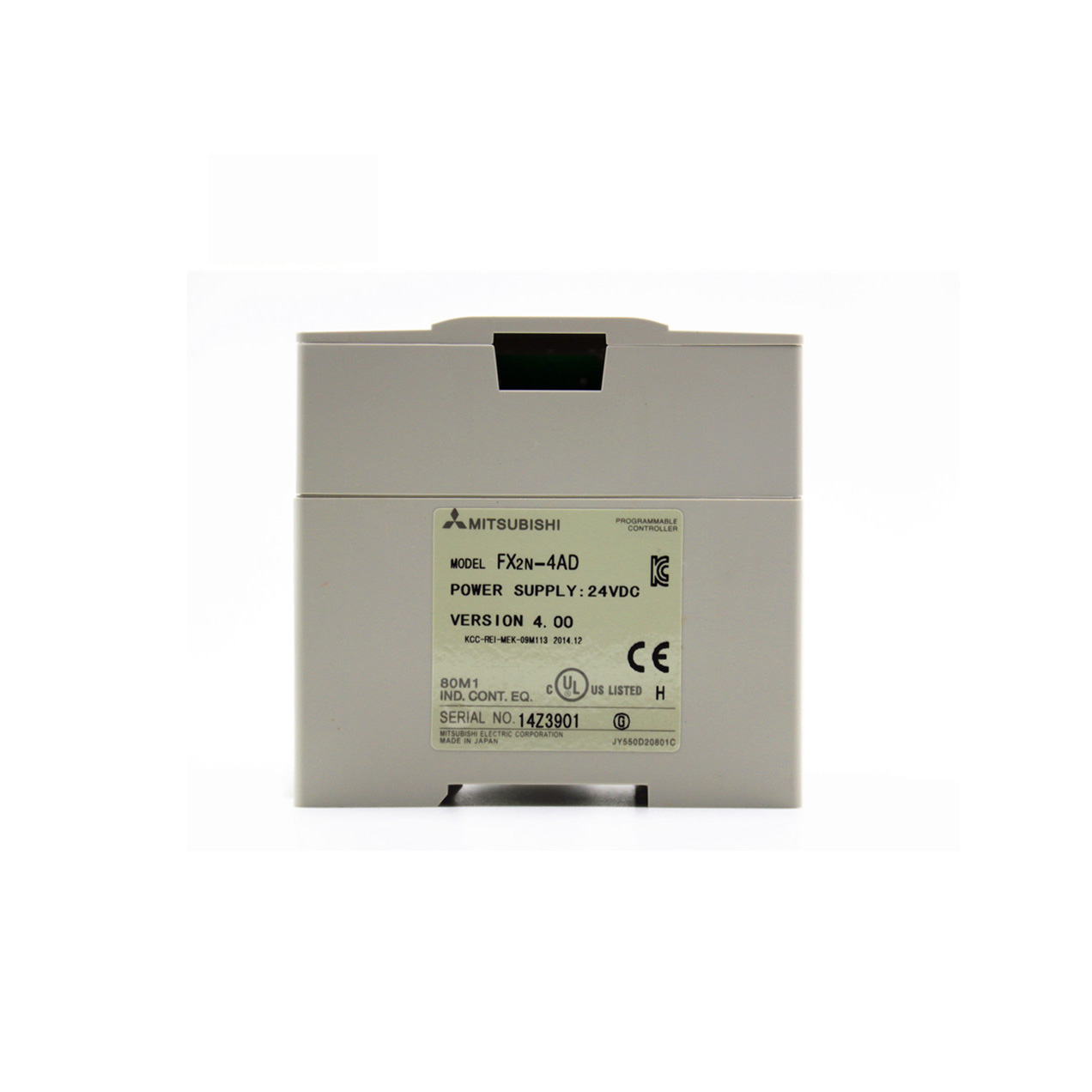

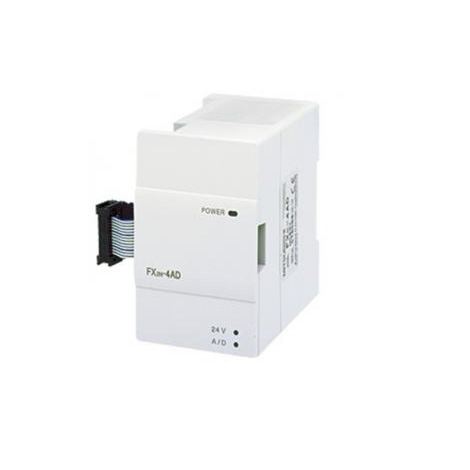

FX2N-4AD

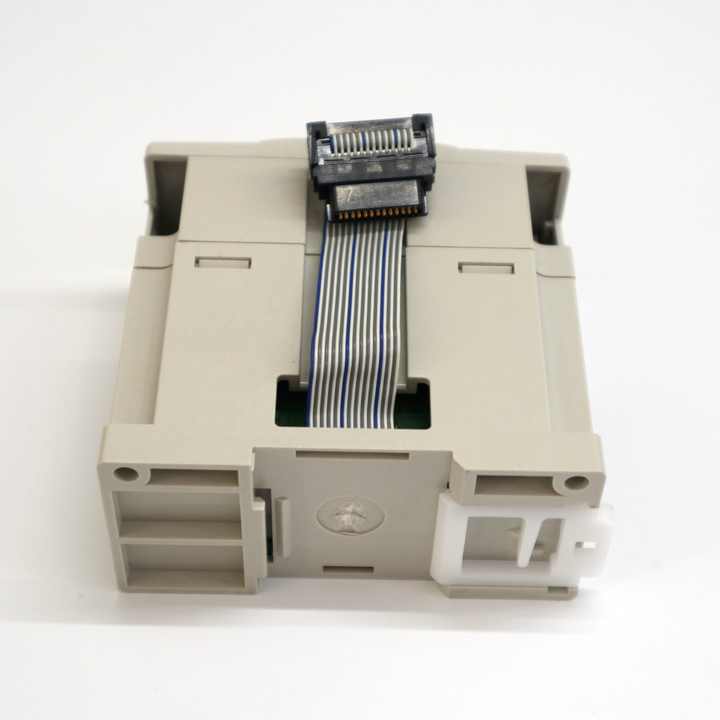

Fx2n-4ad is connected to the PLC host by extension cable, and the external connection of the four channels varies according to the external input voltage or current flow.

The following points should be noted:

1. The external input is the voltage quantity signal, and the + and - poles of the signal are connected with the modules V+ and VI- respectively

2. If the external input is an electric flow signal, V+ and I+ need to be connected.

3. If there are too many interference signals, the FG end of the system housing should be connected to the ground end of FX2N-4AD.

Fx2n-4AD performance indicators:

1. Power supply: The external power supply of FX2N-4AD is 24V, fluctuation shall not exceed 2.4V, and current is 55mA.

2. Conversion features

3.Performance description of analog module

(1) Four input points can be used simultaneously.

(2) The input voltage is -10V~+10V. If the absolute value exceeds 15V, damage can be caused to the unit.

(3) 12-bit conversion results are stored in binary complement.The maximum value is 2047 and the minimum is -2048.

(4) Resolution voltage 1/2000, 5mV, current 1/1000, 20uA.

(5) Overall accuracy 1%.

(6) Conversion speed 6~15ms.
