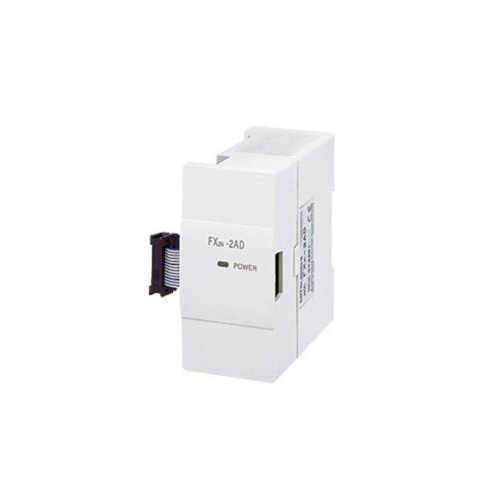

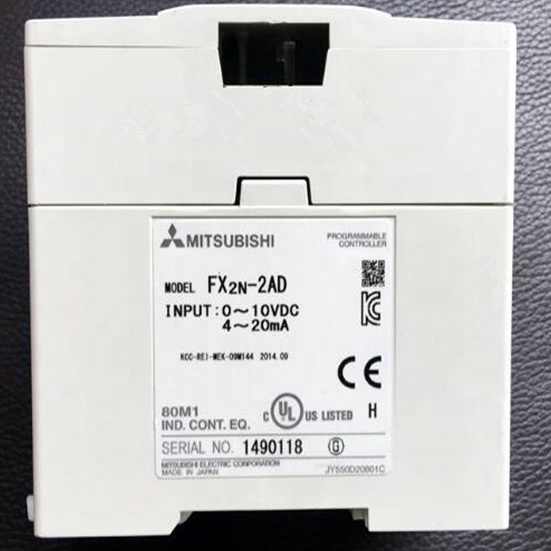

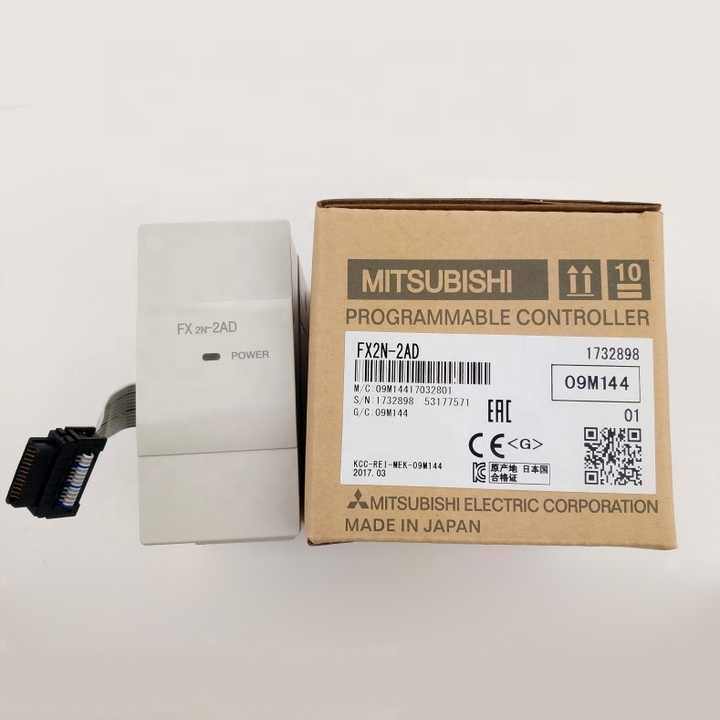

FX2N-2AD

The FX2N-2AD analog input module (hereafter called FX2N-2AD) is used to convert 2-point analog inputs (voltage input and current input) into a 12-bit digital value, which is then entered into a programmable controller.

Fx2n-2ad can be connected to the FX0N, FX2N and FX2NC family of programmable controllers.

  1) According to the wiring method, analog input can be selected from voltage input or current input.

  At this point, assume that the two channels share analog inputs (voltage input and current input);

  2) The two analog input channels can accept 0 to 10V DC, 0 to 5V DC, or 4 to 20MA.

  Make the input characteristics compatible with the two channels;

  3) The characteristics of analog to digital conversion can be adjusted;

  4) This module occupies 8 I/O points, which can be assigned as input or output;

  5) Use FROM/TO instruction TO transmit data with PLC;
