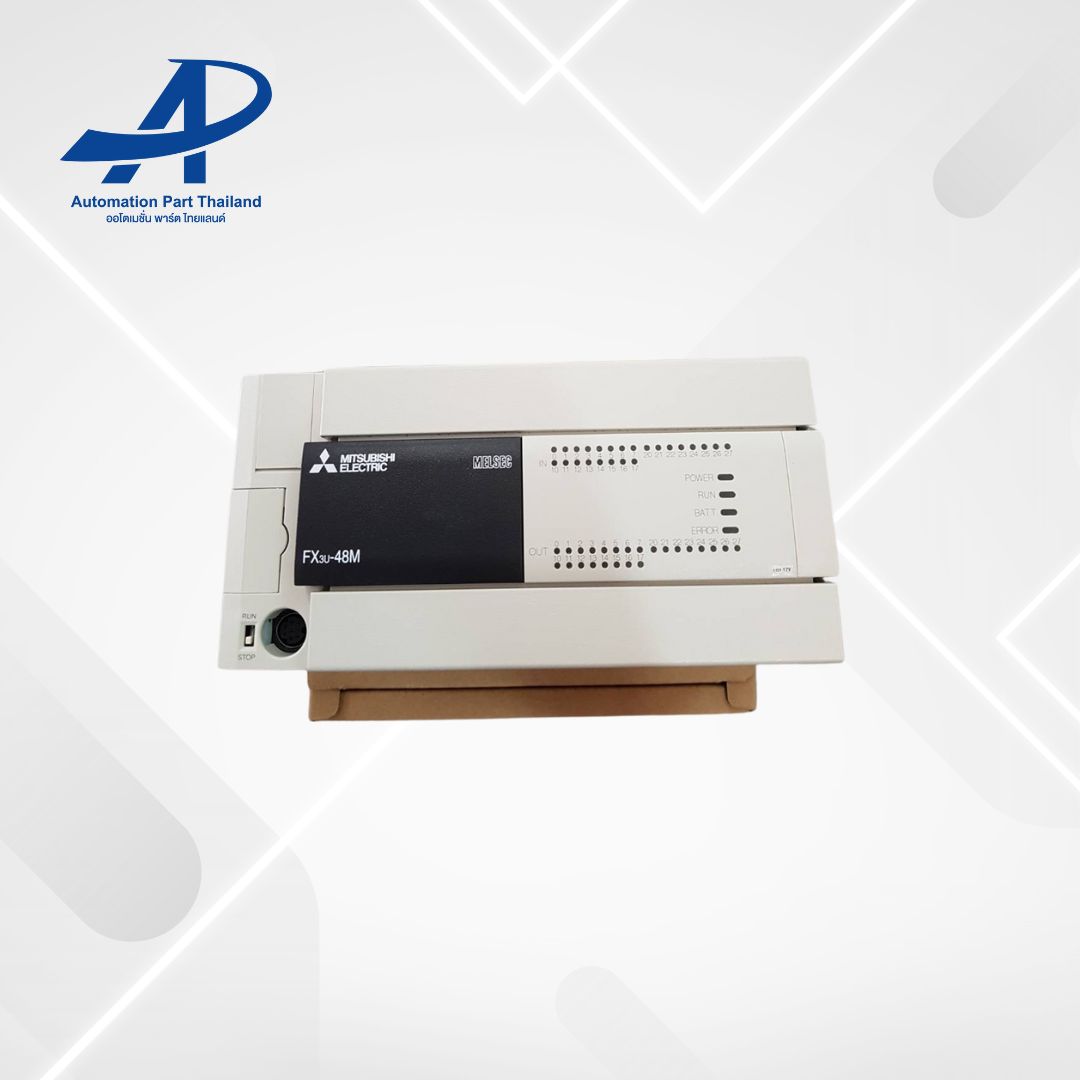

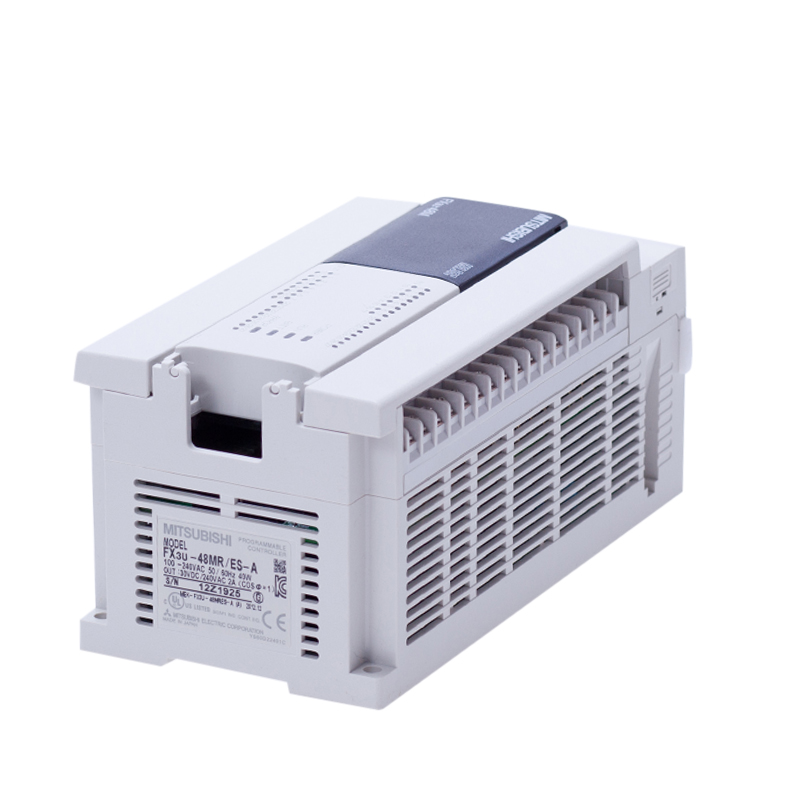

FX3U-48MR/ES-A

FX3U-48MR/ES-A power supply specifications

◆ Power supply voltage: AC100~240V

◆ Allowable range of power supply voltage: AC85~264V

◆ Rated frequency: 50/60Hz

◆ Allowable instantaneous power failure time: for instantaneous power failure less than 10ms, it will continue to run.

     When the power supply voltage is AC200V, it can be changed from 10 to 100ms through the user program.

◆ Power fuse: 250V 5A

◆ Inrush current: Maximum 30A 5ms or less/AC100V, Maximum 65A 5ms or less/AC200V

◆ Power consumption: 40W

◆ DC24V power supply: below 600mA

◆ DC5V built-in power supply: below 500mA
