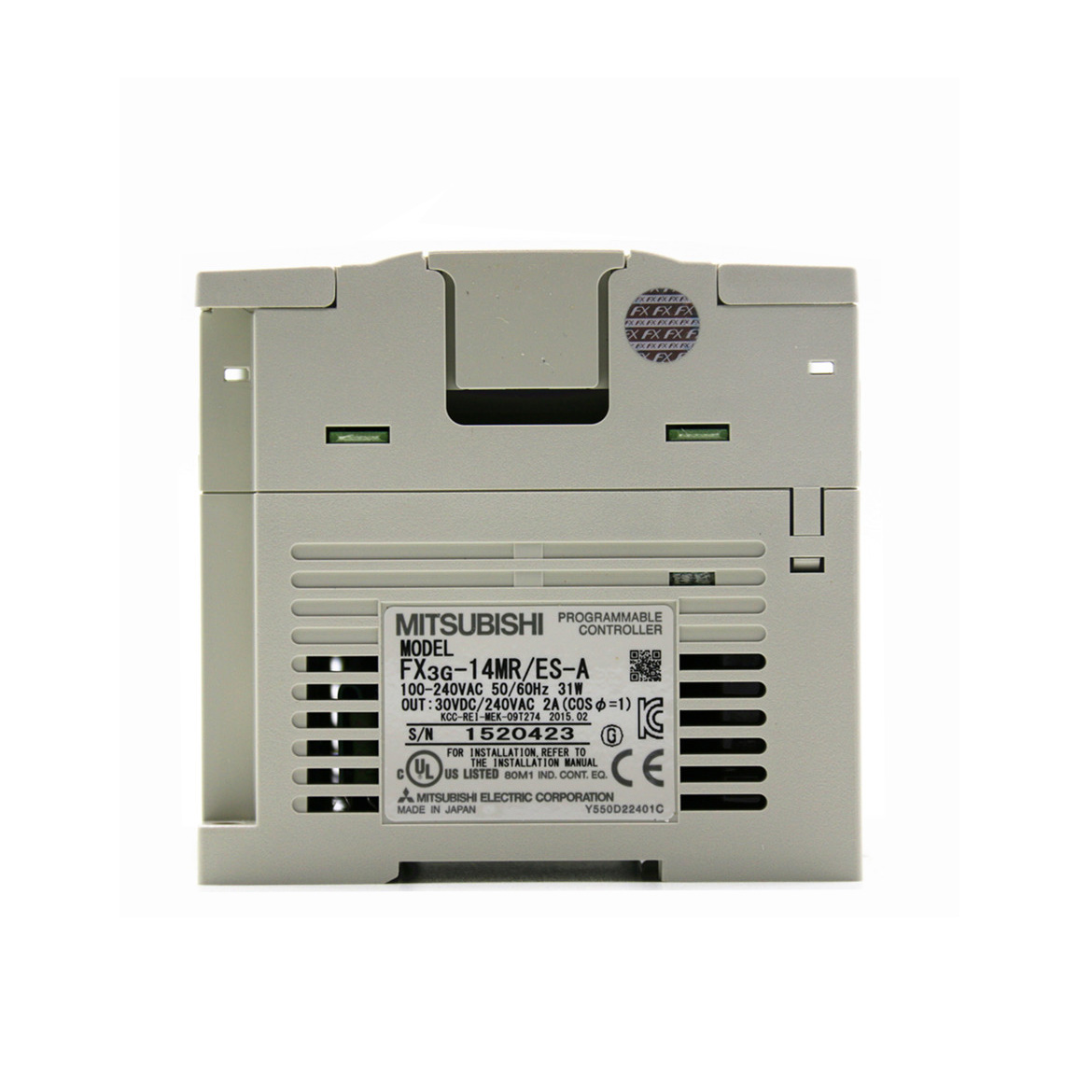

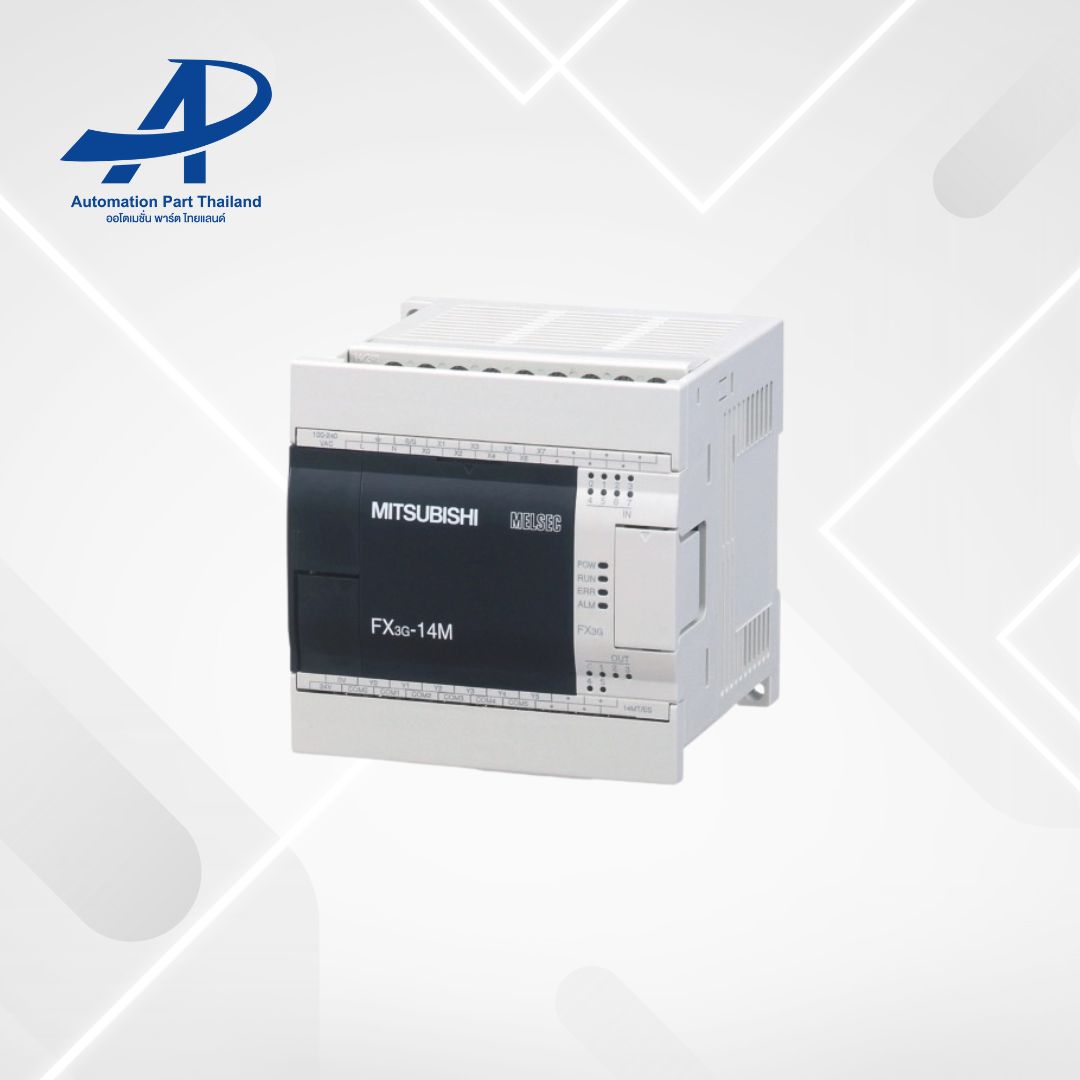

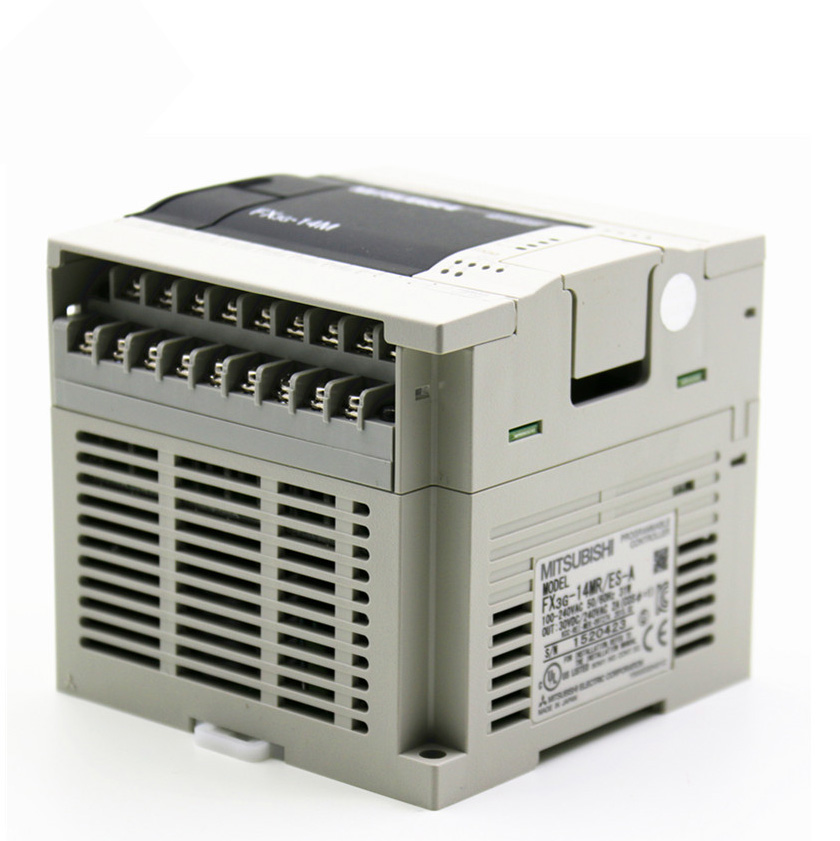

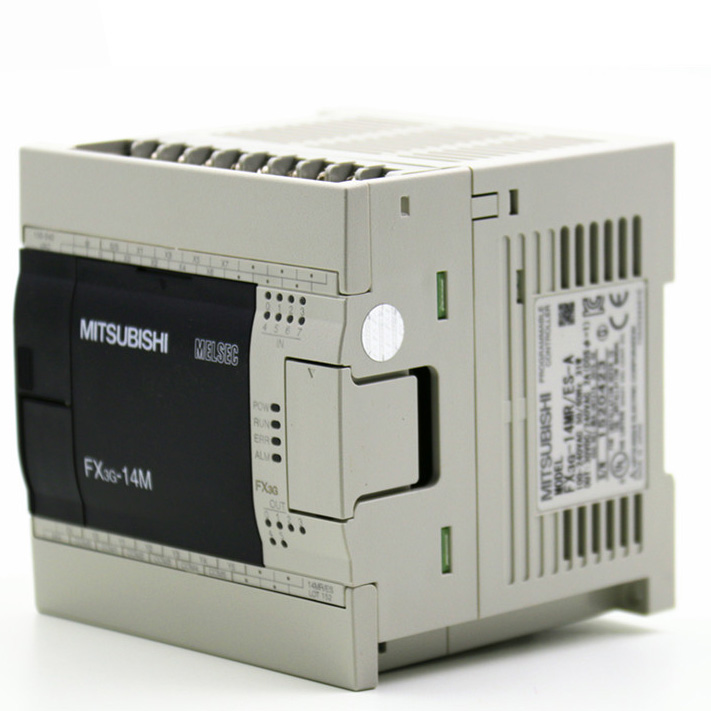

FX3G-14MR/ES-A

FX3G-14MR/ESS Input Specification：

◆ [Input connection mode] Disassembly terminal row (M3 screw)

◆ [Enter points] 8

◆ Input mode: leaky/source

◆ [Input signal voltage] DC20.4~28.8V

◆ [input impedance] 3.3 k Ω (X0 to X7)

◆ [Input Signal current] 7mA/DC24V (X0~X7)

◆ [Input ON sensitivity current] above 4.5mA (X0~X7)

◆ [Input OFF sensitivity current] below 1.5mA

◆ [Input response time] approximately 10ms

◆ Input signal form no voltage contact input

◆ Leaky input :NPN open collector transistor

◆ Source input :PNP open collector transistor

◆ Optocoupler isolation

◆ The LED light on the panel is on when the optocoupler drives

*2. Input impedance

*3. "24V" and "0V" terminals are located at the side of the output terminal.

Output specifications

◆ Type of output transistor leak

◆Disassembly type terminal row (M3 screw)

◆Output points 6 points

◆ [External power supply] below DC5~30V

◆ [Maximum load]

◆ Resistance load: 0.5A/1 point, total load output of each common end is 1 point/common end is less than 0.5A, output of 4 points/common end is less than 0.8A

◆ Inducible load: 12W/DC24V

◆ Open leakage current 0.1mA/DC30V

◆ [ON voltage] below 1.5V

◆ [Response time]

. OFF - & gt;

ON: Y0,Y1 5 s below/above 10mA (DC5-24V), Y2 above 0.2ms below/above 200mA (DC24V)

. ON - & gt;

OFF: Y0,Y1 5 s below/above 10mA (DC5-24V), Y2 above 0.2ms below/above 200mA (DC24V)

Loop isolation photoelectric coupler insulation

The LED light is on when the photoelectric coupler is driven
