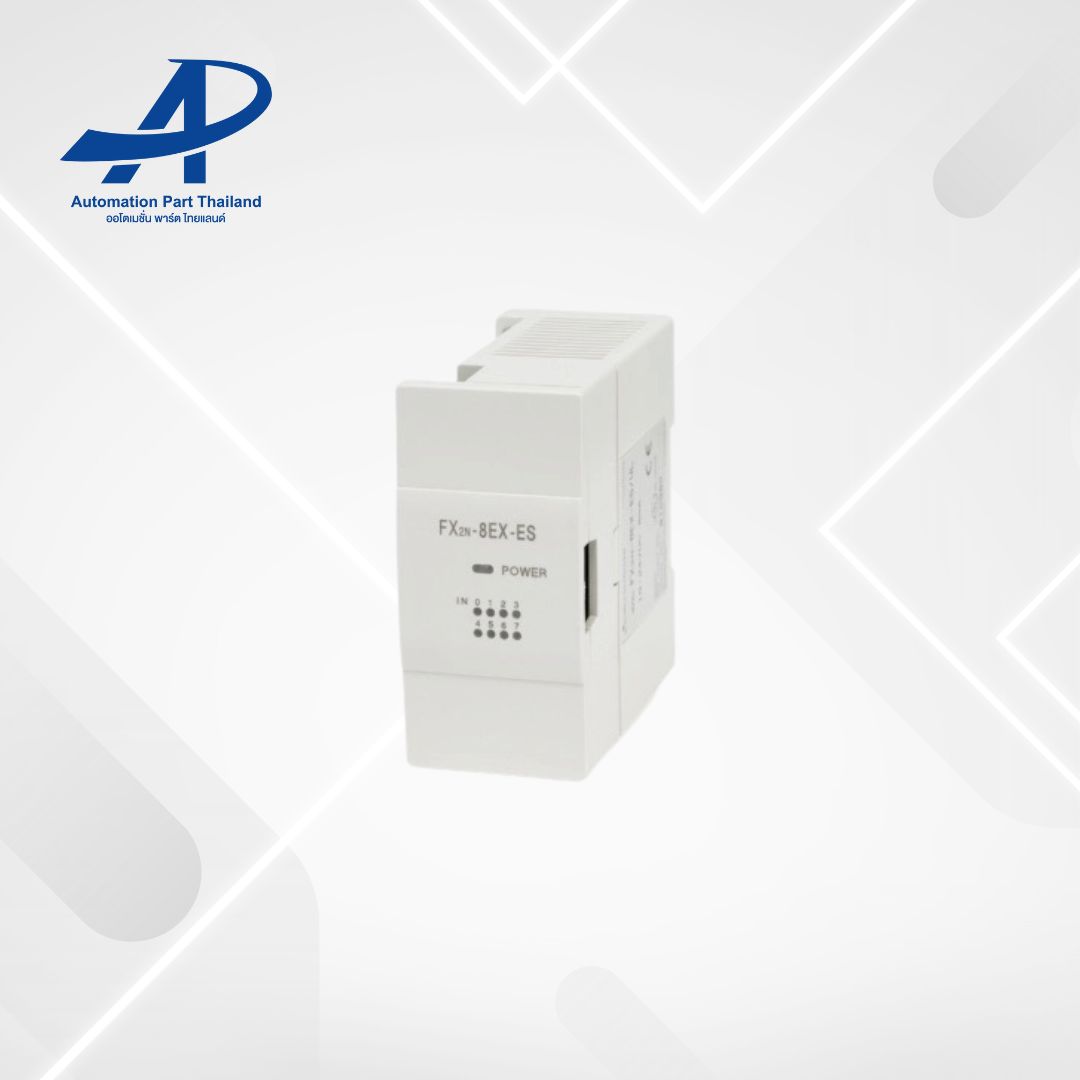

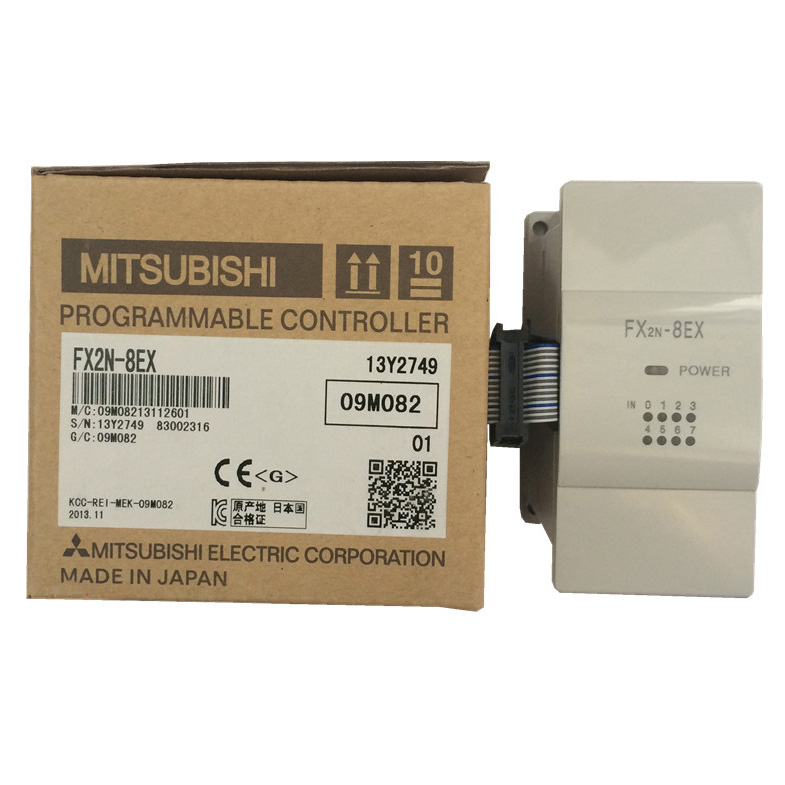

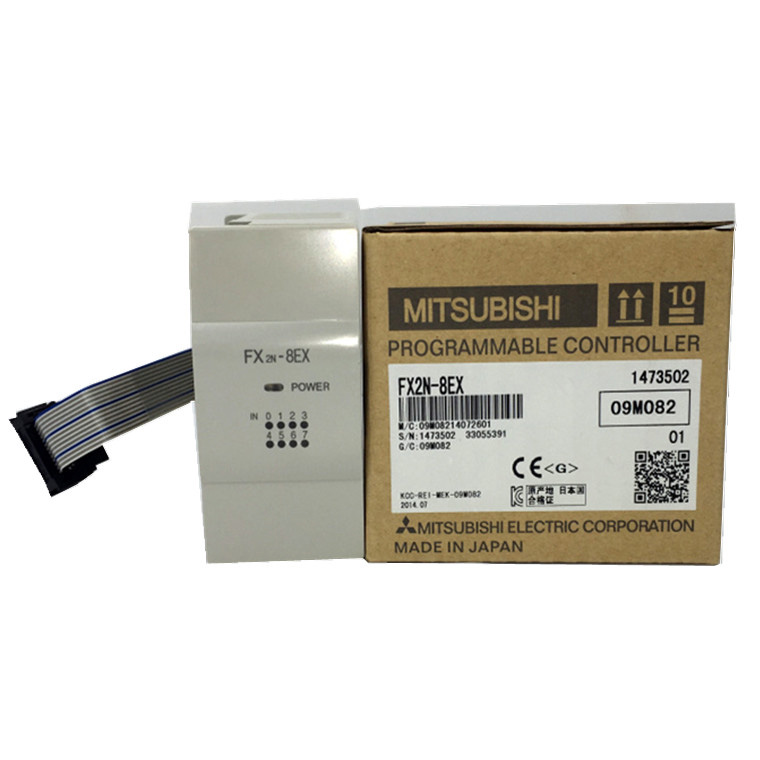

FX2N-8EX

[FX2N-8EX Output Specification]：

◆ [Enter points] 8

◆ Vertical terminal row (M3 screw)

◆ Leakage type (NPN)/ source type (PNP)

◆ [Input signal voltage] DC24V ±10%

◆ Input signal current 5mA/DC24V

◆ Input impedance Ω 4.3 k

◆ [Input ON current sensitivity current] 3.5mA or above /DC24V

◆ [Input OFF current sensitivity current] less than 1.5mA

◆ [Input response time] approximately 10ms

◆ [Input Signal Form]

◆ Leakage input: no voltage contact input, NPN open collector type body tube

◆ Source input: no voltage contact input, PNP open collector type body tube

◆ Optocoupler isolation

◆ [Display of input action] The LED light on the panel lights up when the input is switched on
