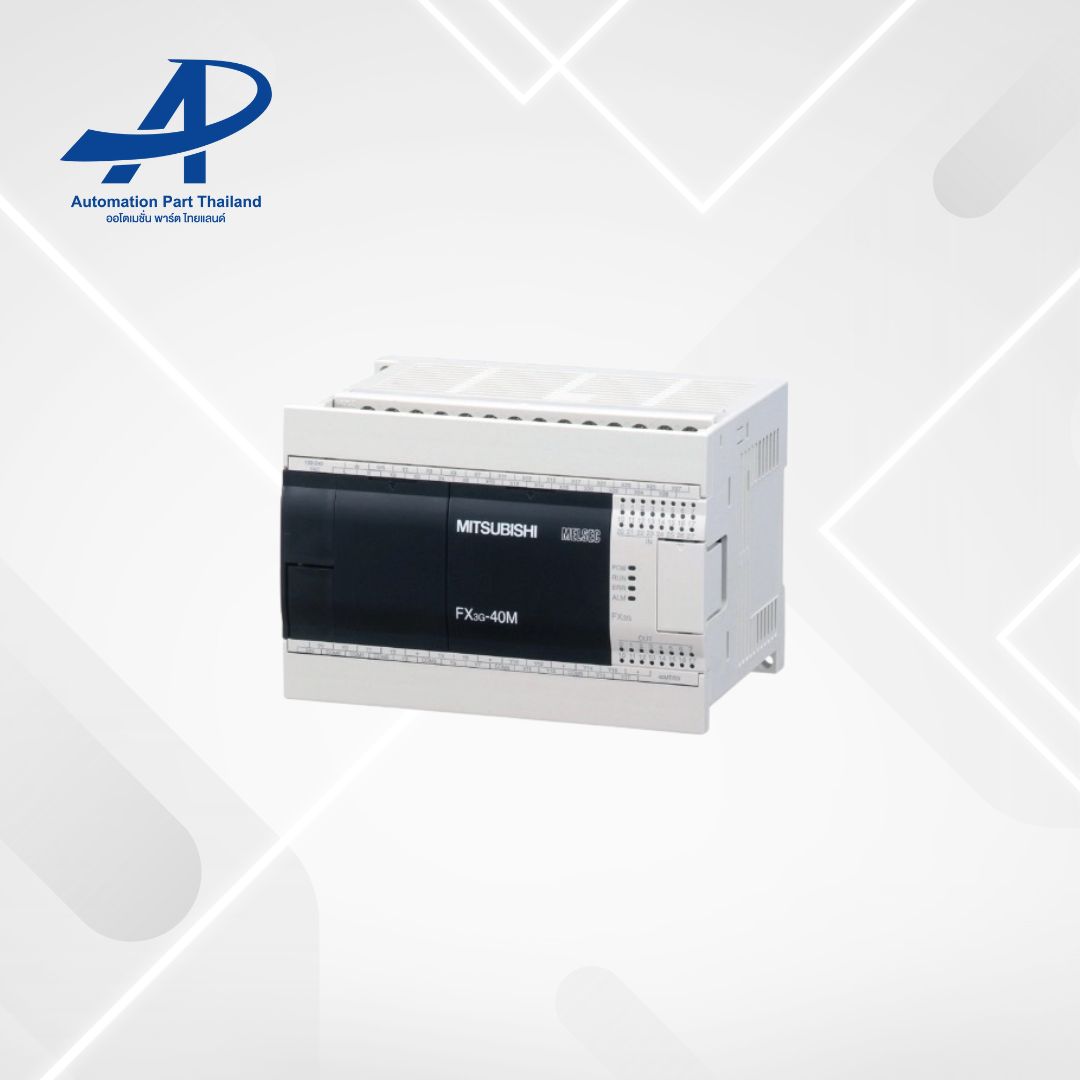

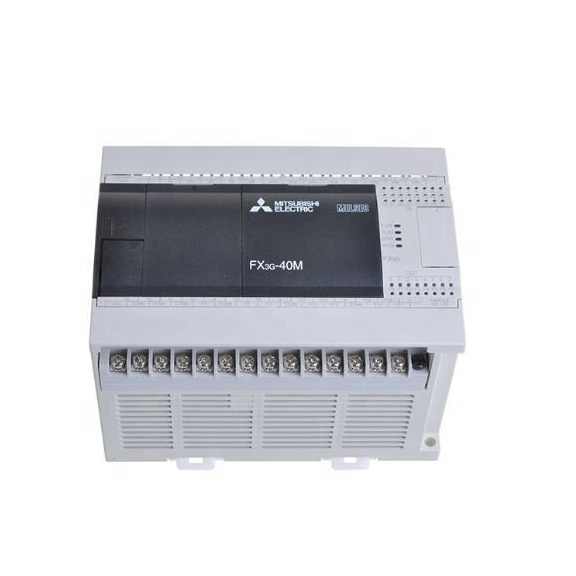

FX3G-40MT/ESS

[FX3G-40MT/ESS Input Specification]：

◆ Input mode: leakage/source

◆ Enter points: 24 points

◆ Input connection mode: Disassembling terminal row (M3 screw)

◆ Input signal voltage: DC24V ±10%

◆Input impedance: X000 Ω ~ X007 3.3 k, 4.3 k Ω X010 later

◆Input signal current: X000~X007 7mA/DC24V, X010 later 5mA/DC24V

◆Input ON sensitivity current: above X000~ x0074.5mA and above 3.5mA after X010

◆ lnput OFF sensitivity current: below 1.5mA

◆ Input response time: approximately 10ms

◆ Input signal form

◆ No voltage contact input

◆ Leakage input :NPN open collector transistor

◆ Source input :PNP open collector transistor

◆ Input loop isolation: Optocoupler isolation

◆ Display of input action: The LED light on the panel is on when the optocoupler drives
