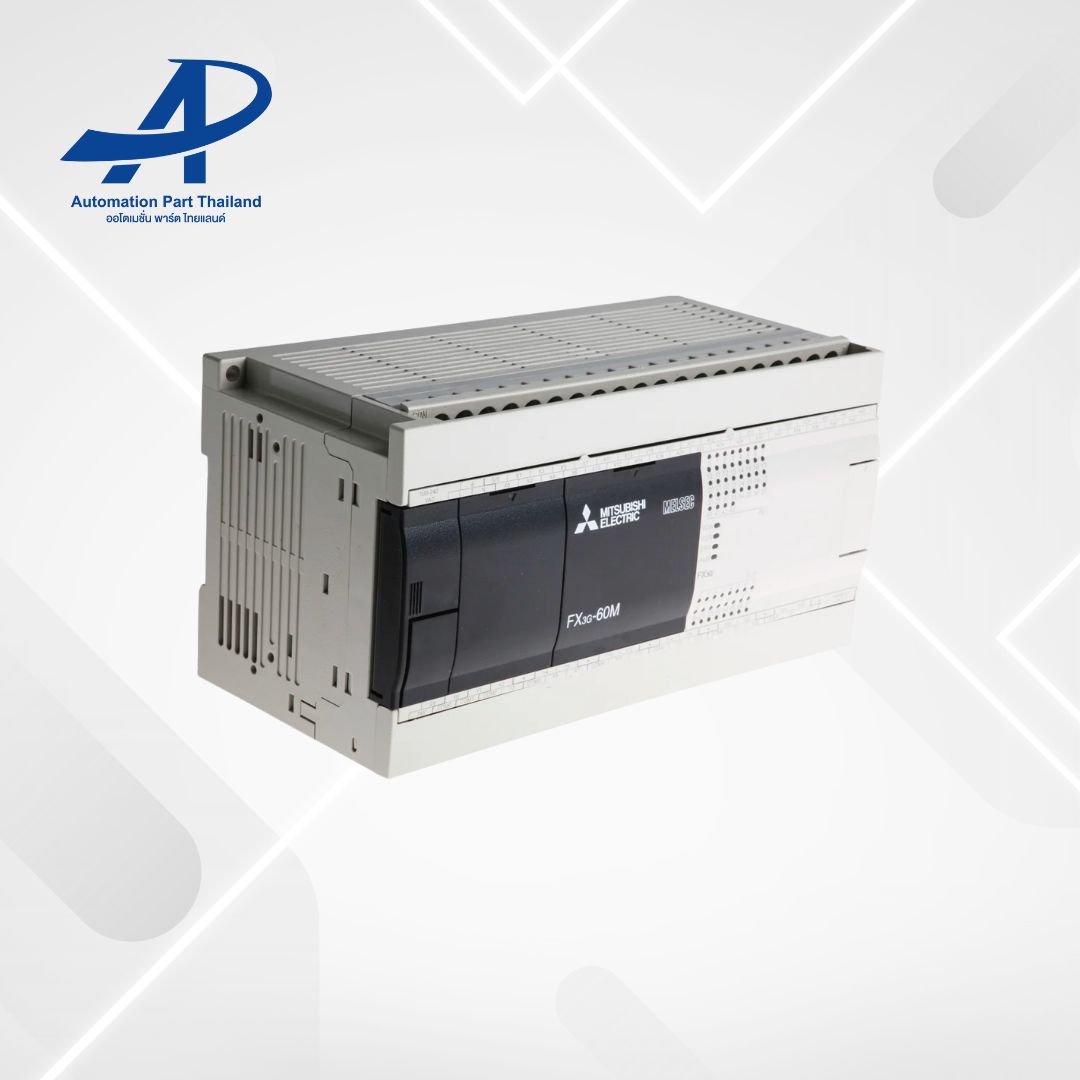

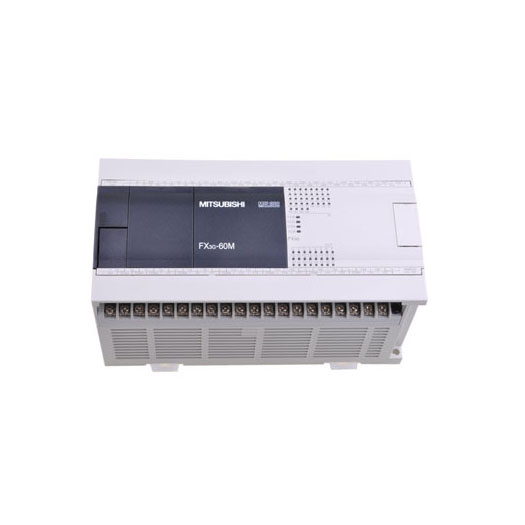

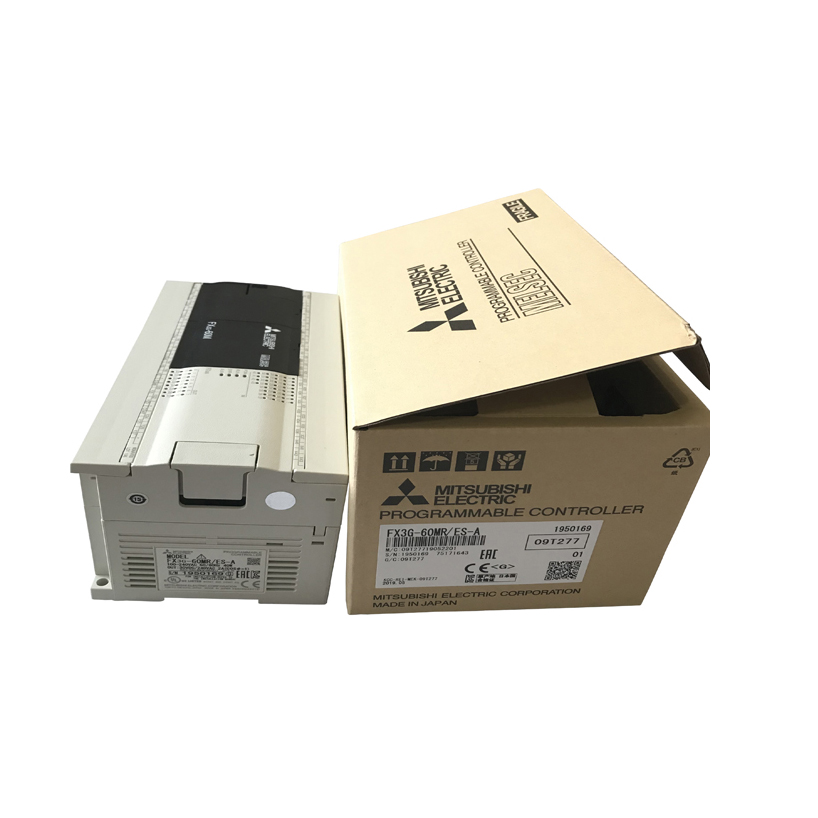

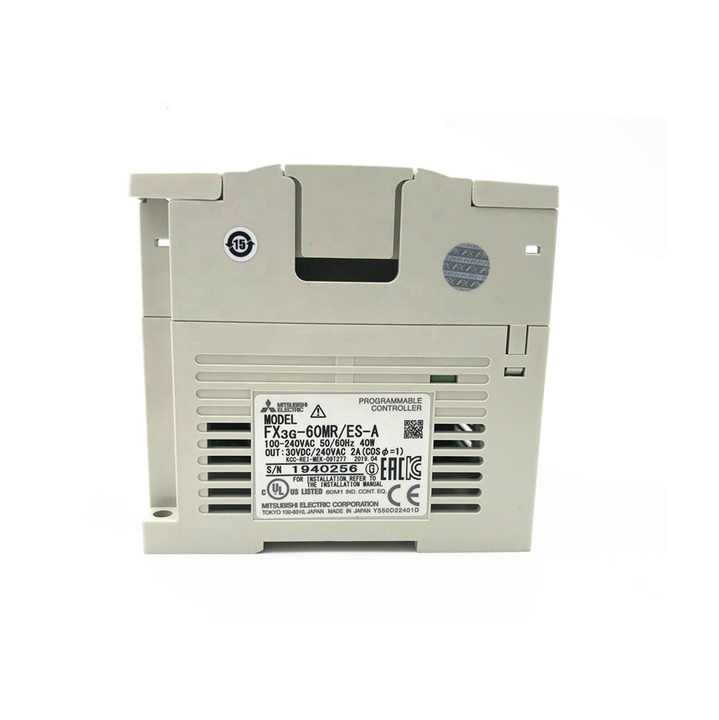

FX3G-60MR/ES-A

[FX3G-60MR/ES-A Input Specification]：

◆ 36 points (40 points occupied)
◆ Disassembly type terminal row (M3 screw)
◆ Input mode: leakage/source
◆ [Input signal voltage] DC24V ±10%
◆ [input impedance] X000 Ω ~ X007 3.3 k, 4.3 k Ω X010 later
◆ [Input signal current] X000~X007 7mA/DC24V, X010 later 5mA/DC24V
◆ [Input ON sensitivity current] X000~X007 above 4.5mA, X010 later than 3.5mA
◆ [Input OFF sensitivity current] below 1.5mA
◆ [Input response time] approximately 10ms
◆ Input signal form no voltage contact input
◆ Leakage input :NPN open collector transistor
◆ Source input :PNP open collector transistor
◆ Optocoupler isolation
◆ The LED light on the panel is on when the optocoupler drives
