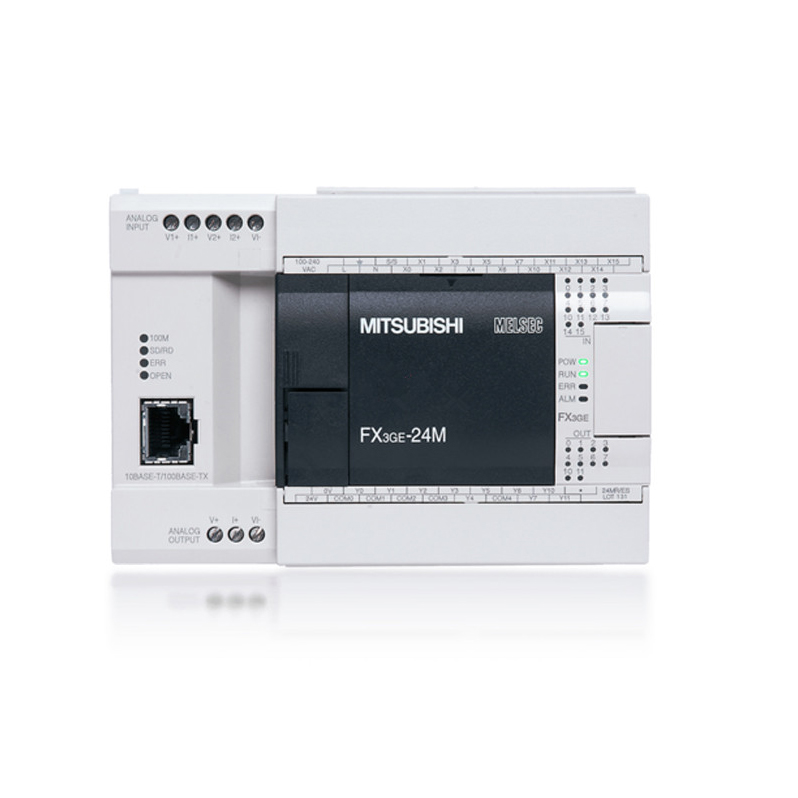

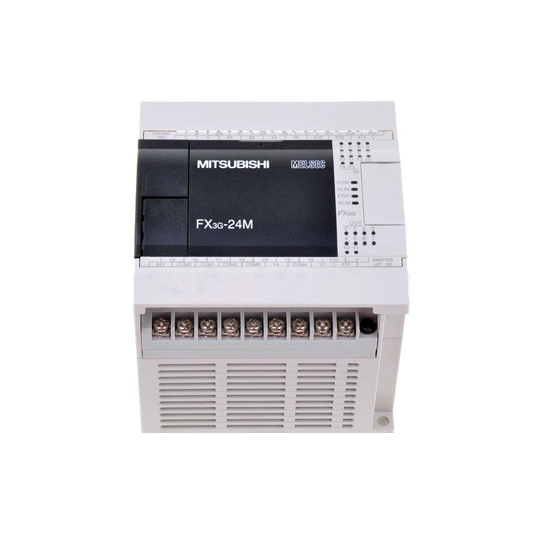

FX3G-24MT/DS

[FX3G-40MR/DS Input Specification]：

◆ [Input connection mode] Disassembly terminal row (M3 screw)

◆ 14 points (occupy 16 points)

◆ Input mode: leaky/source

◆ [Input signal voltage] DC20.4~28.8V

◆ [input impedance] 3.3 k Ω (X0 to X7), 4.3 k Ω X010 later

◆ [Input signal current] 7mA/DC24V (X0~X7), 5mA/DC24V X010 later

◆ [Input ON sensitivity current] 4.5mA or above (X0~X7), 3.5mA or above X010

◆ [Input OFF sensitivity current] below 1.5mA

◆ [Input response time] approximately 10ms

◆ Input signal form no voltage contact input

◆ Leaky input :NPN open collector transistor

◆ Source input :PNP open collector transistor

◆ Optocoupler isolation

◆ The LED light on the panel is on when the optocoupler drives
