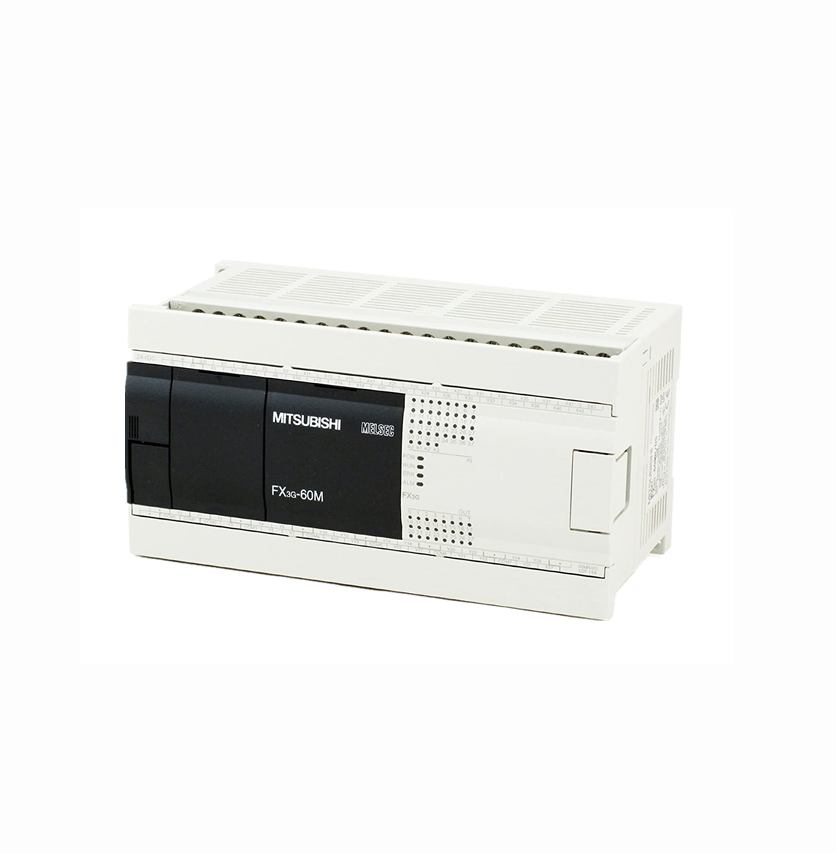

FX3G-60MT/DS

[FX3G-60MT/ESS Input Specification]：

◆ Enter points: 36 points

◆ Input connection mode: Disassembling terminal row (M3 screw)

◆ Input mode: leakage/source

◆ Input signal voltage: DC20.4~28.8V

◆ Input impedance: X000 ~ X007 Ω (3.3 k), X010 Ω (4.3)

◆ Input signal current: X000~X007(7mA/DC24V), X010(5mA/DC24V)

◆ Input ON sensitivity current: X000~X007(over 4.5mA), X010(over 3.5mA)

◆ Input OFF sensitivity current: below 1.5mA

◆ Input response time: approximately 10ms

◆ Input signal form:No voltage contact input

◆ Leakage input :NPN open collector transistor

◆ Source input :PNP open collector transistor

◆ Input loop isolation: Optocoupler isolation

◆ Display of input action: The LED light on the panel is on when the optocoupler drives
