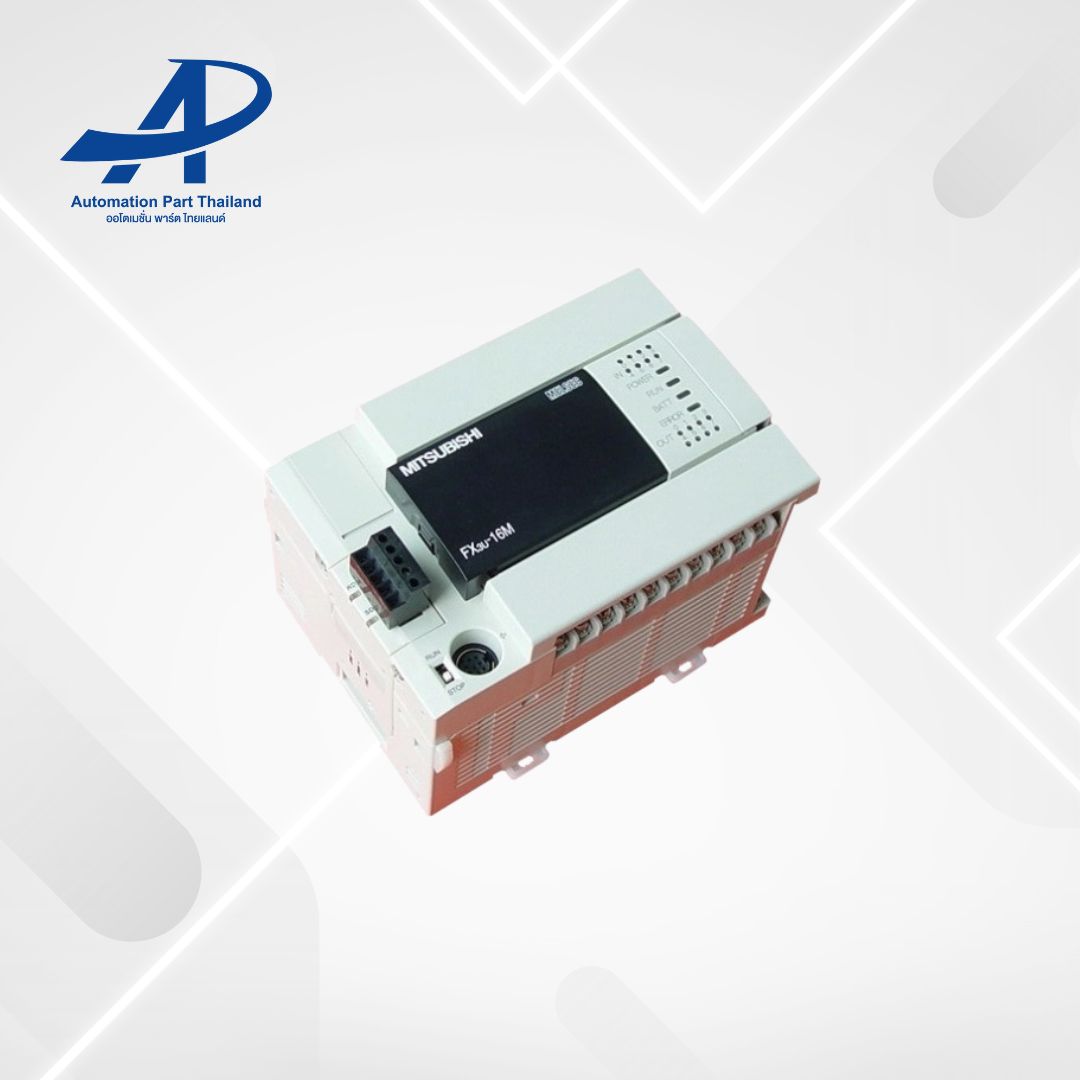

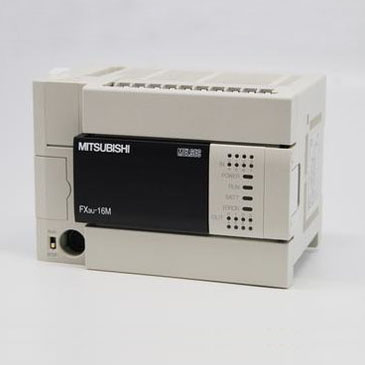

FX3U-16MT/ES-A

[FX3U-16MR/ES-A Input Specification]：

◆ Input form: leakage/source

◆ Input points: 8

◆ Input connection mode: Fixed terminal row

◆ Input signal voltage: AC power supply: DC24V ±10% DC power supply: DC16.8~28.8V

◆ Input impedance: X000 ~ X005 Ω (3.9 K) X006 ~ X007 Ω (3.3 K)

◆ Input signal current: X000~X005(6mA/DC24V) X006~X007(7mA/DC24V)

◆ ON input induced current: X000~X005(above 3.5mA) X006~X007(above 4.5mA)

◆ OFF input induction current: Below 1.5mA

◆ Input signal form: No voltage contact input

◆ Leakage input: NPN open collector transistor

◆ Source input: PNP open collector transistor

◆ Input loop isolation: Optocoupler isolation

◆ Display of input action: The LED light on the panel is on when the optocoupler drives
