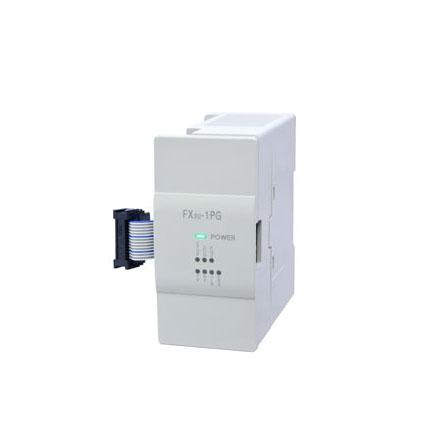

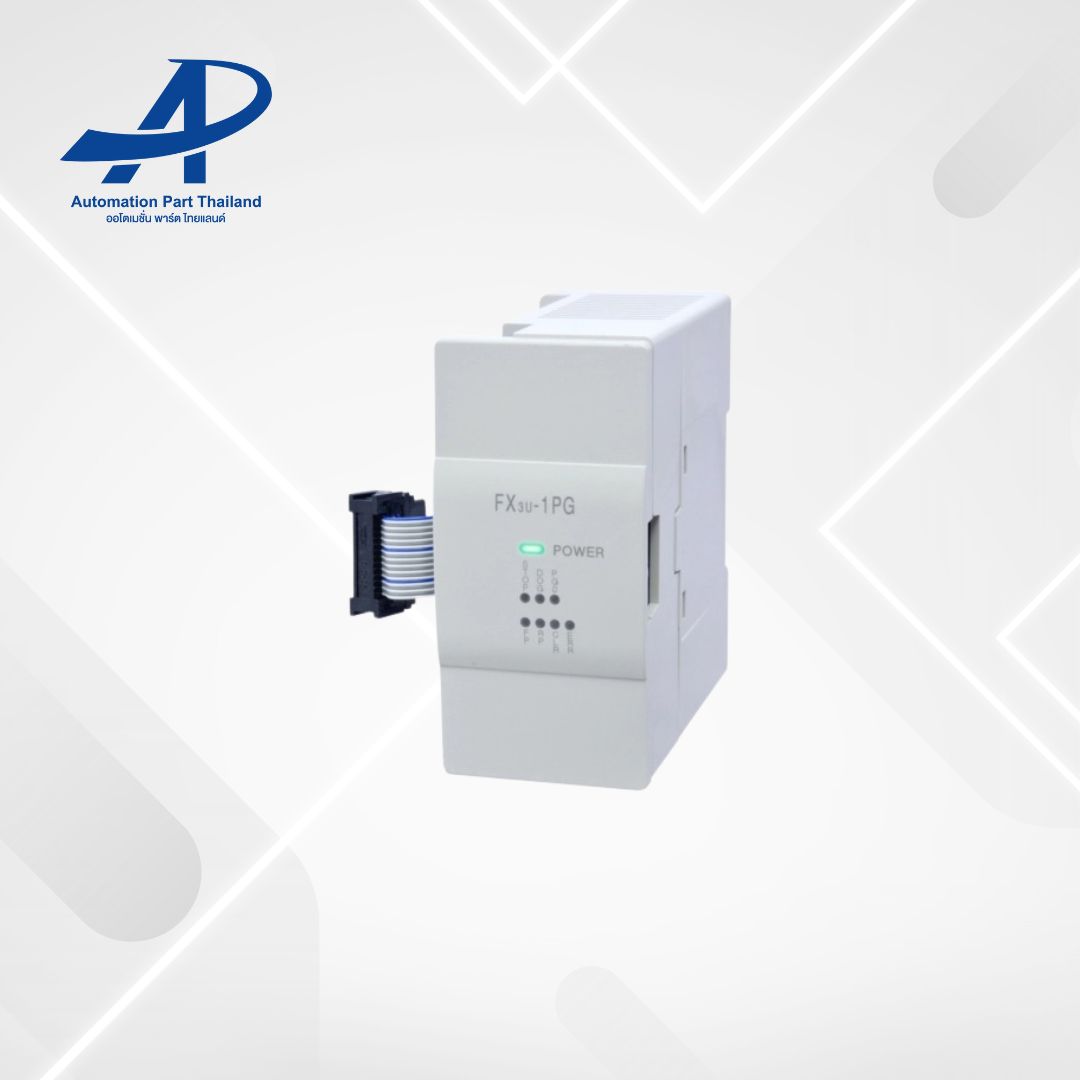

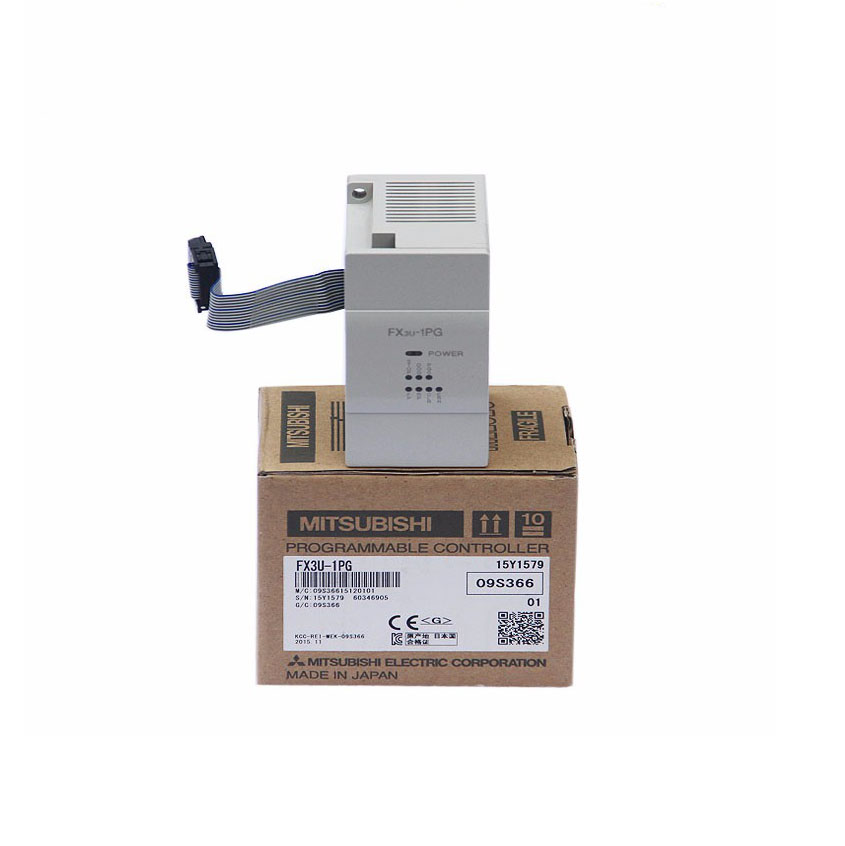

FX3U-1PG

[Mitsubishi PLC Positioning Module FX3U-1PG input Specification]

Group 1:
STOP: Decelerate or STOP external input instruction positioning, interrupt input use when 2-speed positioning operation
DOG: DOG input or external instruction location in origin resetting DOG machine operation, interrupt 1-speed location, interrupt stop, interrupt input use in 2-speed location operation
Signal voltage: DC24V (S/S terminal power supply)
Input current: 7.0mA
ON current: more than 4.5mA
OFF current: below 1.5mA
Signal form:
※1. No voltage contact input
※2. Leaky input: NPN transistor open collector
※3. Source input: PNP open set transistor

Response time: DOG input (1ms);STOP input (4ms)
Loop insulation: photoelectric coupler isolation
Action: Input ON and the LED lights up

Group 2:
PG0: zero point signal input, used for DOG type machine origin recovery operation
Signal voltage: DC5 ~ 24V
Input current: below 20mA
ON current: above 4.0mA
OFF current: below 0.5mA
Signal form: NPN open collector transistor

Response pulse width: above 4 s
Loop insulation: photoelectric coupler isolation
Action: Input ON and the LED lights up
