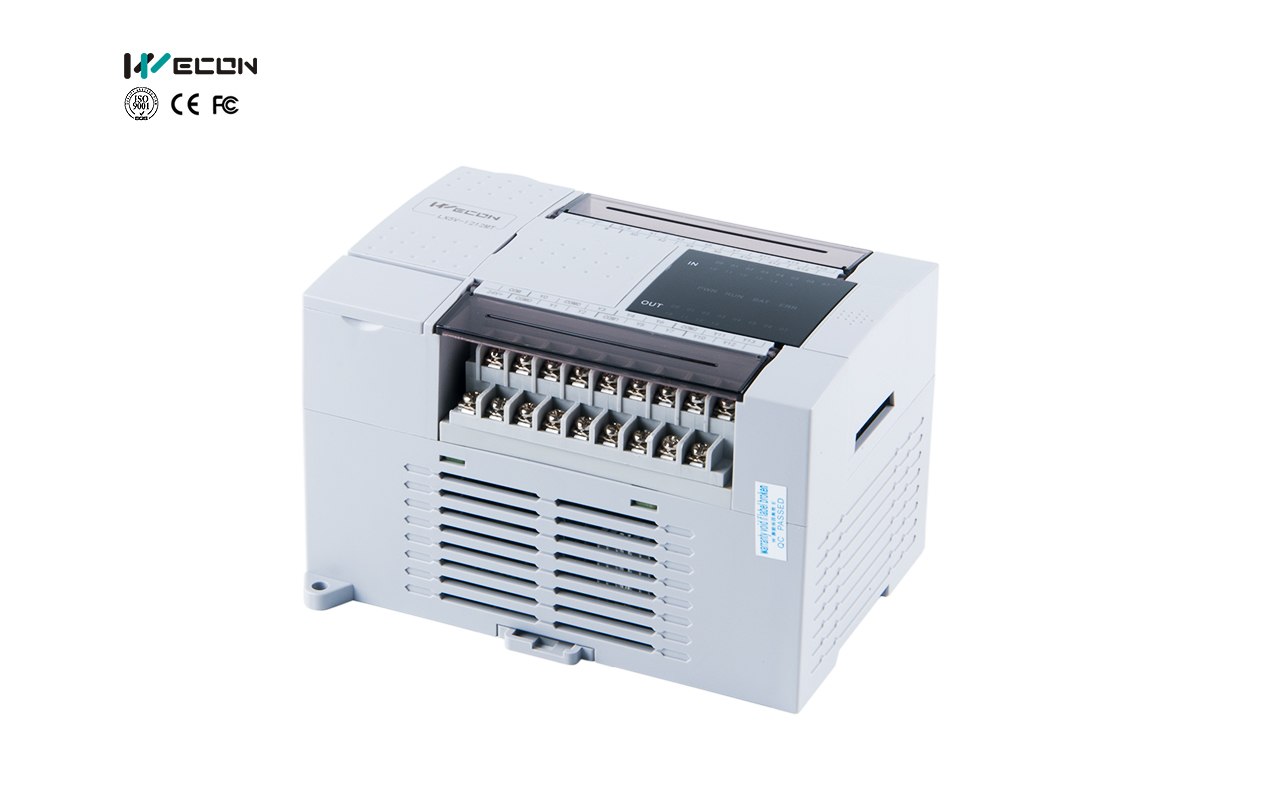

LX5V-1412MT PLC

Running Mode

Round Scan/ Interrupt

Programming

Instruction List/ Ladder

Total Instructions

Basic Instructions: 29 / Application Instructions: 170

Execute time

Basic Instructions: 0.01-0.03us

System Storage

512KB

Download/ Monitoring

Serial Programming Cable (Serial port) / Micro USB

High Speed Pulse Output

Transistor: 4 channels / 200K

High Speed Counter Interrupt

100 channels

External  Input Interrupt

X0-X7 supports both rising and falling edges

Timer Interrupt

100 Channels, Interruption time (min): 0.1ms

High Speed Input Single

4 Channels 150KHz

High Speed Input AB Phase

4 channel 100KHz, frequency modes:1/2/4 times

Holding Addresses

Adjusted by software

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1: RS422 or RS485

COM2: RS485

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: 0 ~ 70℃

Humidity

35~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

USB Supply

Use for upgrading firmware, downloading ladder diagram
