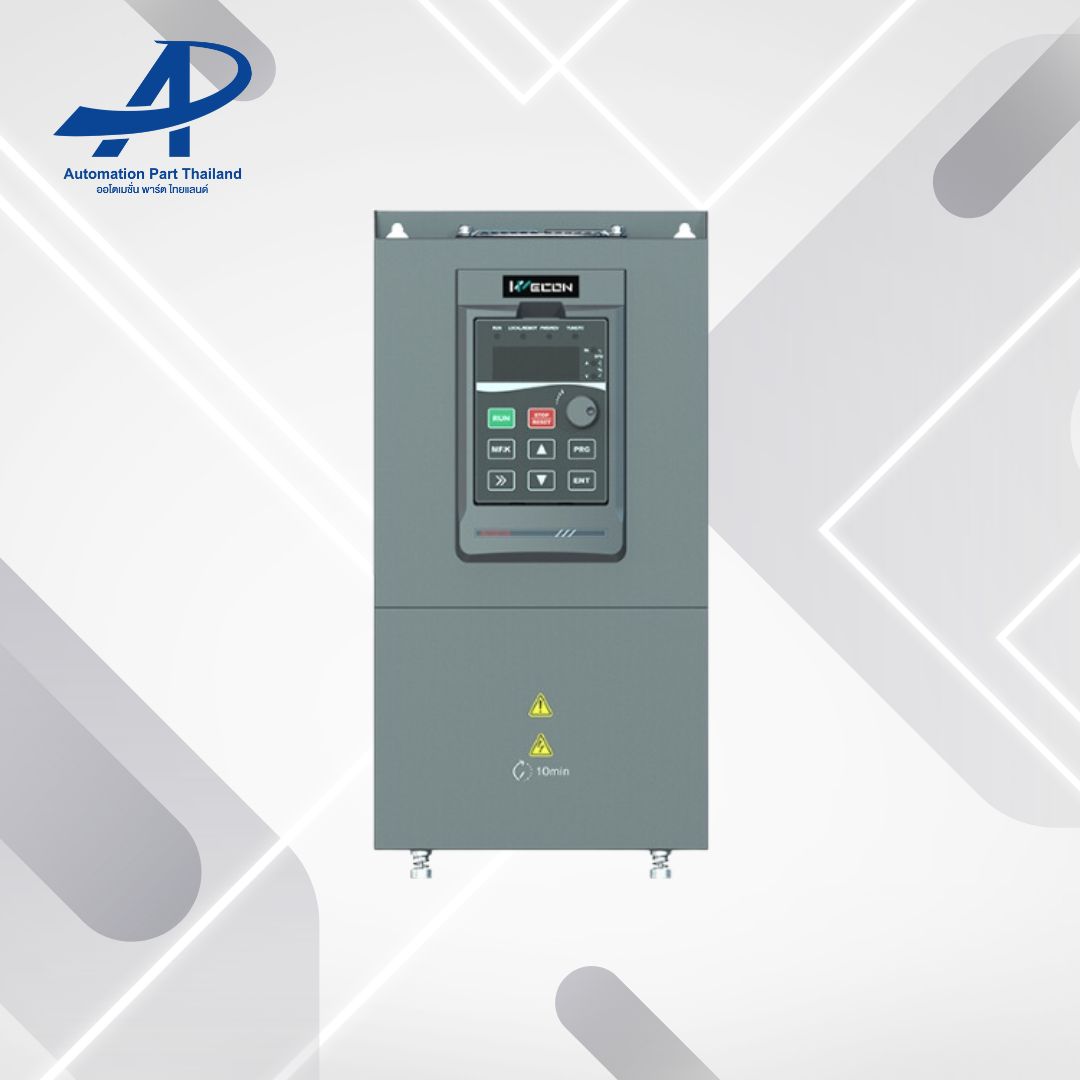

VB 75KW-110KW INVERTER

Main Features:

1. Output frequency range：SVC: 0-320Hz；V/F:0-1000Hz,increase 60% on the basis of 8000B series.

2. Compact size. The mounting size of some models is 40% smaller than that of 8000B.

3. Response rate: 39% increased on the basis of 8000B.

4. Support speed mode and torque mode,low speed with high torque output.

5. Short-circuit protection in power-to-GND.

6. Optimized PID function.

7. Carrier tuned with temperature.
