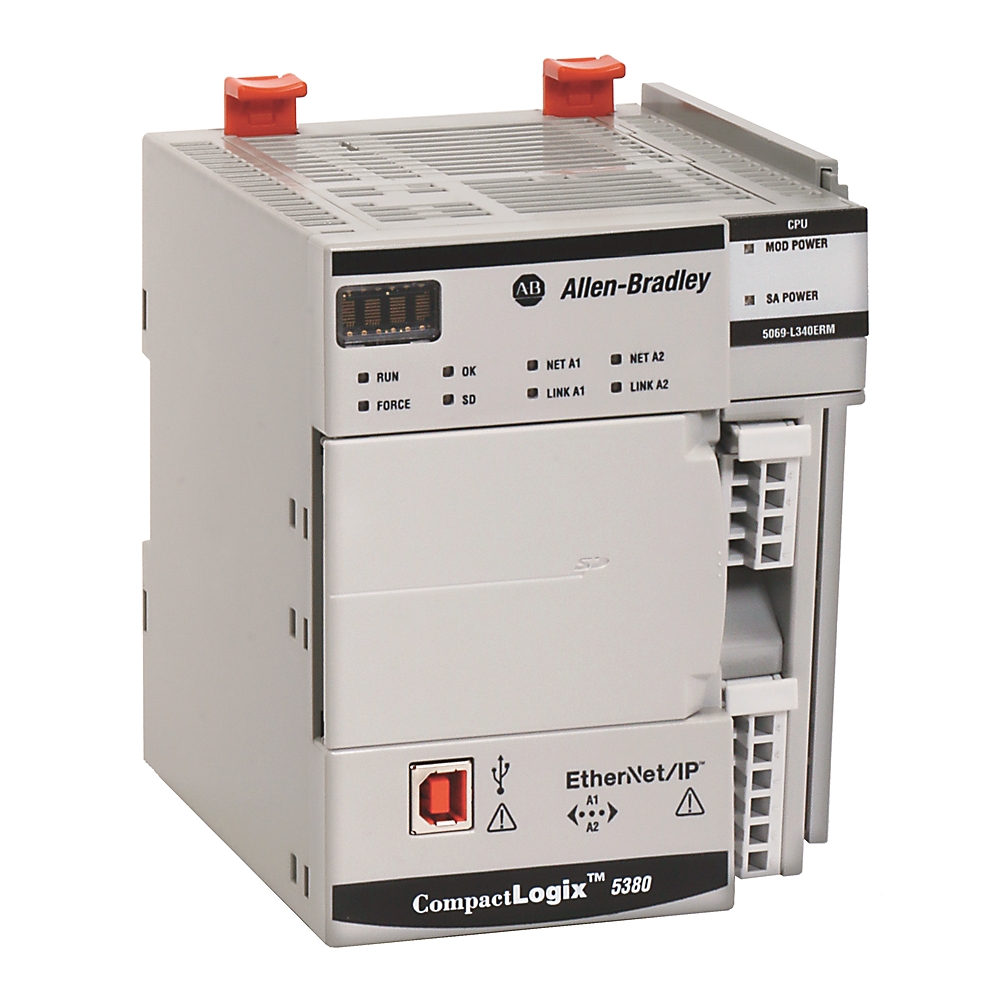

| รายละเอียดสินค้า |
| Number of HW-interfaces industrial Ethernet |
2 |
| Voltage type of supply voltage |
DC |
| Supporting protocol for LON |
No |
| Additional program memory possible |
Yes |
| Supporting protocol for TCP/IP |
No |
| Supporting protocol for ASI |
No |
| Supporting protocol for Modbus |
No |
| Supporting protocol for other bus systems |
No |
| System accessory |
Yes |
| IO link master |
No |
| Supporting protocol for EtherNet/IP |
Yes |
| Supporting protocol for PROFIsafe |
No |
| Supporting protocol for SafetyBUS p |
No |
| Memory size |
600 kByte |
| Local I/O modules, max |
16 |
| Power dissipation, max |
8.5 W |
| EtherNet/IP nodes supported, max |
40 |
| Wire category |
3 - on USB port, 1 - on power ports, 2 - on Ethernet ports |
| Programming languages |
Relay Ladder Logic (RLL), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC) |
| Wire size |
5069-RTB4-SCREW, 5069-RTB6-SCREW connections: 0.5...1.5 mm2 (22...16 AWG) solid or stranded copper wire that is rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only, 5069-RTB4-SPRING, 5069- |
| Isolation voltage |
300V (continuous), Basic Insulation Type, SA, and MOD Power to Backplane, 300V (continuous), Basic Insulation Type, SA to MOD Power, 300V (continuous), Basic Insulation Type, Ethernet to Backplane, 300V (continuous), Double Insulation Type, Ethernet to MO |
| Number of HW-interfaces USB |
1 |
| With optical interface |
No |
| Supporting protocol for PROFIBUS |
No |
| Supporting protocol for CAN |
No |
| Supporting protocol for INTERBUS |
No |
| Supporting protocol for KNX |
No |
| Supporting protocol for Data-Highway |
No |
| Supporting protocol for DeviceNet |
No |
| Supporting protocol for SUCONET |
No |
| Redundancy |
No |
| Supporting protocol for SERCOS |
No |
| Supporting protocol for INTERBUS-Safety |
No |
| Radio standard Bluetooth |
No |
| Radio standard Wi-Fi 802.11 |
No |
| Supporting protocol for AS-Interface Safety at Work |
No |
| Supporting protocol for DeviceNet Safety |
No |
| Supporting protocol for Foundation Fieldbus |
No |
| Supporting protocol for PROFINET CBA |
No |
| Supporting protocol for PROFINET IO |
No |
| Radio standard GPRS |
No |
| Radio standard GSM |
No |
| Radio standard UMTS |
No |
| Thermal dissipation, max |
29 BTU/hr |
| MOD Power current, max |
450 mA |
| MOD Power voltage range |
18...32V DC |
| MOD Power inrush |
850 mA for 125 ms |
| EtherNet/IP network topologies supported |
DLR , Star, Linear |
| MOD Power passthrough |
9.55 A @ 18...32V DC |
| SA Power current, max |
10 mA (DC power), 25 mA (AC power) |
| Ethernet performance |
10 Mbps, 100 Mbps, 1 Gbps, Full-duplex only |
| MOD Power current rating, max |
10 A, Do not exceed 10 A current draw at the MOD Power RTB |
| SA Power voltage ranges |
0...32V DC, 0…240V AC, 47...63 Hz, ATEX/IECEX, 125V AC max |
| Controller tasks |
Continuous-32 tasks, Periodic-1000 programs/task, Event-All event triggers |
| SA Power current rating, max |
10 A (AC or DC power), Do not exceed 10 A current draw at the SA Power RTB |
| SA Power passthrough |
9.95 A @ 0...32V DC 9.975 A @ 0...240V AC, 47...63 Hz ATEX/IECEX @ 125V AC maximum |
| EtherNet/IP modes supported |
Dual-IP mode (Available with the Studio 5000 Logix Designer® application, version 29.00.00 or later), Linear/DLR mode |
| Rail mounting possible |
Yes |
| Front built-in possible |
No |
| Rack-assembly possible |
No |
| Wall mounting/direct mounting |
No |
| Width |
98.1 mm |
| Height |
143.97 mm |
| Depth |
136.81 mm |
| Model |
Compact |
| Weight |
approx. 0.768 kg (1.693 lb) |
| Built-in communication ports |
2 Ethernet ports, 1 USB port |
| USB port communication |
USB 2.0, Type B, Full speed (12 Mbps), Programming, configuration, firmware update, and on-line edits only |
| Insulation stripping length |
5069-RTB4-screw 5069-RTB6-screw connections: 12 mm (0.47 in.), 5069-RTB4-spring 5069-RTB6-spring connections: 10 mm (0.39 in.) |
| Socket interfaces supported, max |
32 |
| Surrounding air temperature, max |
60 °C |
| ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged damp heat), 5...95% noncondensing |
| Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Vibration |
5 G @ 10...500 Hz: IEC 60068-2-6 (Test Fc, Operating) |
| EFT/B immunity |
IEC 61000-4-4: ±4 kV @ 5 kHz on power ports, ±2 kV @ 5 kHz on Ethernet ports |
| Operating temperature |
0 °C < Ta < +60 °C (+32 °F <Ta < +140 °F), IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock) |
| Shock |
Operating: 30 G, IEC 60068-2-27 (Test Ea, Unpackaged Shock) |
| Radiated RF immunity |
10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| Surge transient immunity |
IEC 61000-4-5: ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ± 2 kV line-earth (CM) on Ethernet ports |
| Voltage variation |
IEC 61000-4-29: 10 ms interruption on MOD Power port |
| Emissions |
IEC 61000-6-4 |
| Nonoperating temperature |
-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) |
| North American temperature code |
T4 |
| ATEX temp code |
T4 |
| IECEx temp code |
T4 |
| Enclosure type |
None (open-style) |
| DIN rail |
Compatible zinc-plated, chromate steel DIN rail, EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) |
| Terminal block torque |
5069-RTB4-screw & 5069-RTB6-screw: 0.4 N.m (3.5 lb.in), 5069-RTB4-spring & 5069-RTB6-spring: Torque does not apply |
|
